Clamps Overview

Odoo • Image and Text

Bale Clamps

Features:
Clamping, Sideshifting or Revolving Attachment or Cotton, Textiles
Capacities From  3,500 Lb To 7,500 Lb
Equalized Arm Travel
E-Profile Aluminum Frame
T-Bar Alloy Steel Arm Carriers
Self Aligning Cylinders

Bale Clamps (View Details)
Odoo • Image and Text

Gaylord Clamps

Features:
Forks assembly bolted to faceplate
Class II or class III mountings
Hydraulic lock valves hold pressure against the load
E-profile, brushed aluminum frame for durability and strength
Various openings and arm lengths available
Various fork sizes available
Arms are rubber covered.  Steel arms available, no rubber.

Gaylord Clamp (View Details)

Odoo • Image and Text

Pulp Bale Clamps 16 Unit

Features:
High strength alloy steel arms and arm carrier bars
Aluminum bronze arm bushings
Powerful hydraulic cylinders
sun hydraulics
high pressure hose
bolted arms and carriers
large, heavy duty gripping ribs.

Pulp Bale Clamps (View Details)

Multi-Purpose & Rigid Arm Carton Clamps

Uses:
Used for handling palletless corrugated fiberboard cartons and boxes, wooden bins and crates, totes and lugs and in many bale applications where totes, bins, gaylords etc. are common.

Arms surface is aluminum bonded to vulcanized grooved rubber to ensure secure grip and long life. The bolted rubber surface is replaceable.

Available in standard and custom opening ranges as well as custom arm lengths and heights.

Arms are very thin profile for easy load entry. Tips of the arms are protected by steel guards to preserve the surface integrity.

Multi-Purpose & Rigid Arm Clamps (View Details)

Odoo • Image and Text

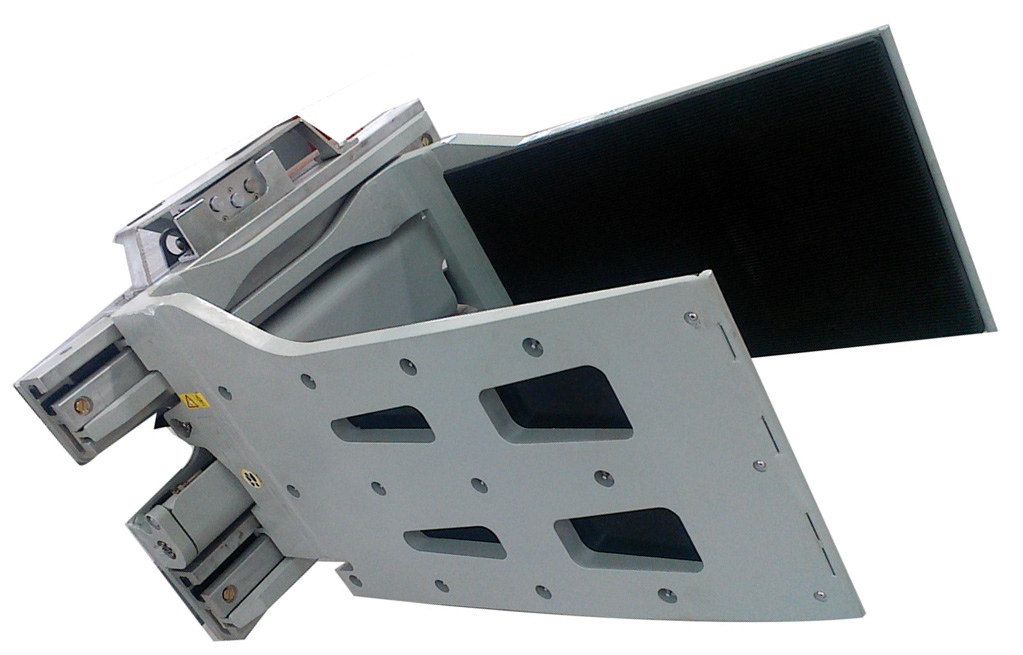

Multi-Purpose Rotating & Rigid Arm Rotating Clamps

Uses:
Used for handling palletless corrugated fiberboard cartons and boxes, wooden bins and crates, totes and lugs and in many bale applications where totes, bins, Gaylords etc. are common.

Arms surface is aluminum bonded to vulcanized grooved rubber to ensure secure grip and long life. The bolted  rubber surface is replaceable.

Available in standard and custom opening ranges as well as custom arm lengths and heights.

Arms are very thin profile for easy load entry. Tips of the arms are protected by steel guards to preserve the surface integrity.

Multi-Purpose Rotating & Rigid Arm Clamps (View Details)

Odoo • Image and Text

Pallet Fork Clamps

Uses: Recycle  Facilities, Scrap Yards, Waste Bales, Foundries, Stevedores, Manufacturing, Warehousing, Wide Loads, Etc.

Features:
More uses than fork positioner
Grip and lift using lock valve
Fork Positioning
Clamping
Capacities From  3,500 Lb To 7,000 Lb
E-Profile Aluminum Frame
T-Bar Alloy Steel Arm Carriers
Self-Aligning Cylinders
Lube-Free Contoured Arm Bearings
Cylinder Protection Bumper

Pallet Fork Clamp Sideshifting or Non-Sideshifting (View Details)

Odoo • Image and Text

Pallet Fork Clamps Rotating

Uses:
Recycle  Facilities, Scrap Yards, Waste Bales, Foundries, Stevedores, Manufacturing, Warehousing, Wide Loads, Etc.

Features:
More uses than fork positioner
Grip and lift using lock valve
Fork Positioning
Clamping
Capacities From  3,500 Lb To 7,000 Lb
E-Profile Aluminum Frame
T-Bar Alloy Steel Arm Carriers
Self-Aligning Cylinders
Lube-Free Contoured Arm Bearings
Cylinder Protection Bumper

Pallet Fork Clamp Rotating (View Details)

Odoo • Image and Text

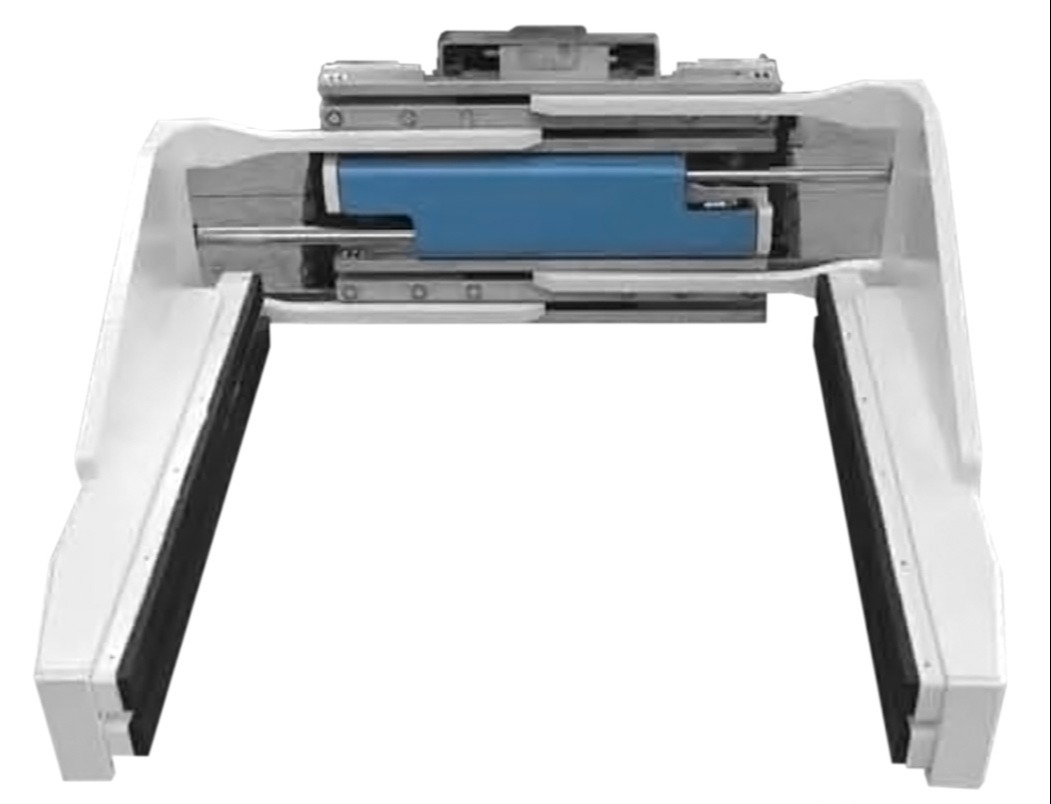

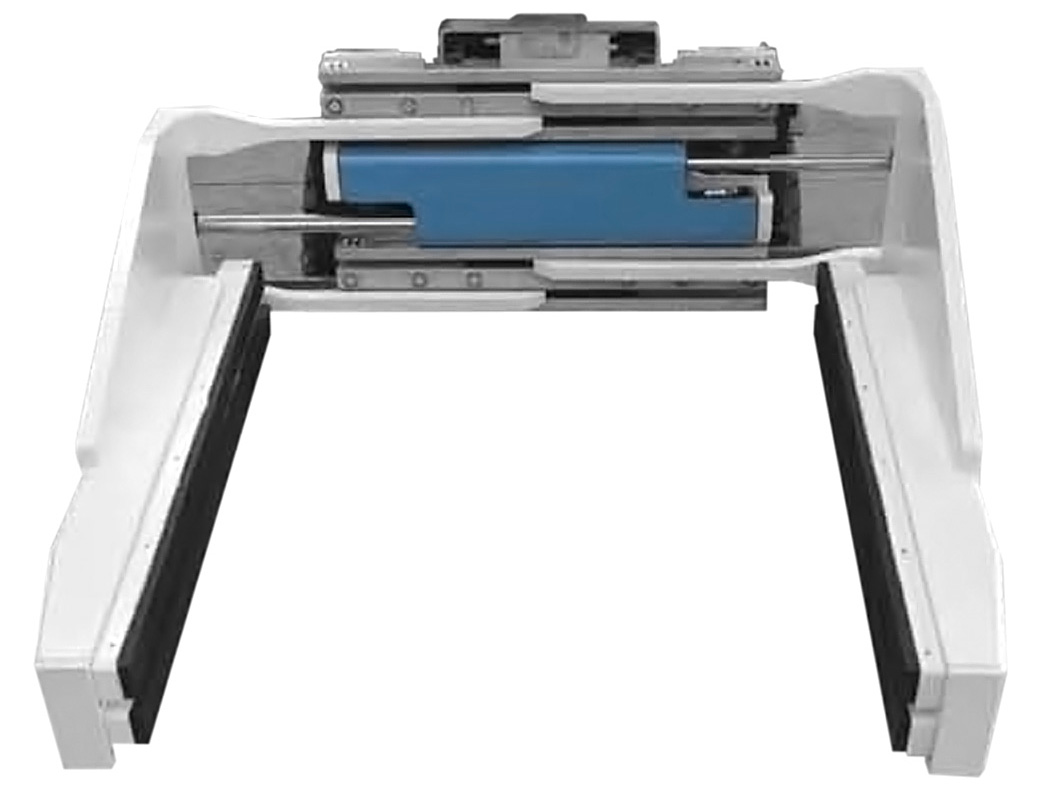

Block and Building Material Clamps

Features:
48 Inch long Forks
Class II or class III mountings
Sideshifting or non-sideshifting
Hydraulic lock valves hold pressure against the load
E-profile, brushed aluminum frame for durability and strength
Various openings and arm lengths available

Specifications:
Sideshifting:  2 hydraulic functions required
Non-sideshifting:  1 hydraulic function required
Maximum operating pressure:  2000 PSI
Recommended flow rate:  8-12   GPM

Block and Building Material Clamps (View Details)



Odoo • Image and Text

Fork-Co Leads the Pack

With our industry best lead times (4-5 weeks on complex builds), full in-house engineering and design team, on-site manufacturing and fabrication facility just south of Houston, TX, and very large standard product inventory, Fork-Co is the right choice for your project. We stand behind our products 100%, either it accomplishes your goals, or we aren't done.
