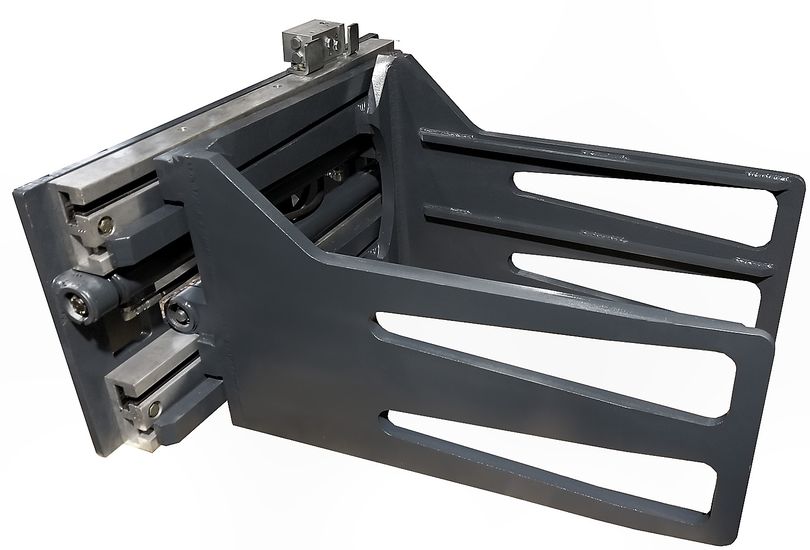

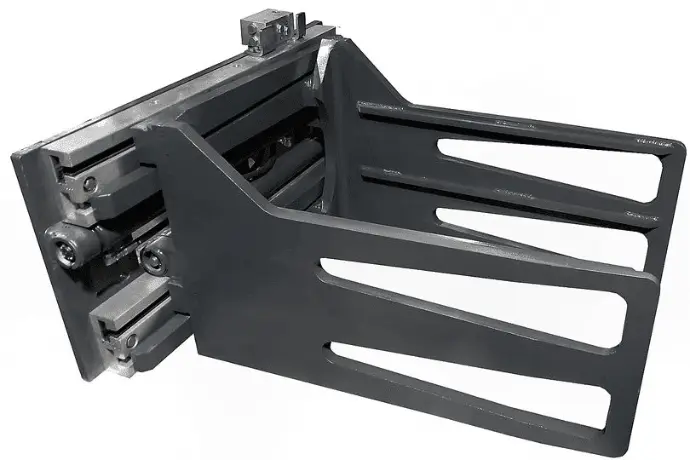

Series GA15D Variable Dimensions:
|
Model
|
HT (A)
|
Length (B)
|
Width (W)
|
Arm Thickness
|
VCG
|
ECG
|
Weight
|
|
GA15D-BCS-01A
|
18"
|
36"
|
35"
|
2.1" |
10.5"
|
15.5"
|
1023lbs
|
| GA15D-BCS-02A |
18" |
40" |
35" |
2.5" |
8.75" |
15.6" |
1045lbs |
Series GA15D Standard Dimensions:
|
Capacity @ 24" LC
|
Mounting
|
Opening Range
|
AET
|
| 2500lbs |
ITA Class II |
18"-63" |
5" |
Series GA20D Variable Dimensions:
|
Model
|
HT (A)
|
Length (B)
|
Opening Range
|
Arm Thickness
|
VCG
|
ECG
|
Weight
|
GA20D-BCS-01A
|
18"
|
27"
|
19"-68"
|
2" |
10"
|
11.5"
|
1023lbs
|
|
GA20D-BCS-03A
|
18"
|
36" |
22"-70" |
2.5" |
9.3" |
14" |
1047lbs |
GA20D-BCS-04A
|
24" |
40" |
22"-70" |
3" |
9.5" |
14.6" |
1050lbs |
GA20D-BCS-05A
|
24" |
44" |
22"-70" |
3.5" |
9.8" |
15.2" |
1056lbs |
Series GA20D Standard Dimensions:
|
Capacity @ 24" LC
|
Mounting
|
Frame Width
|
AET
|
| 3500lbs |
ITA Class II |
41" |
5" |
Series GA30D Variable Dimensions:
|
Model
|
HT (A)
|
Length (B)
|
Opening Range
|
Arm Thickness
|
VCG
|
ECG
|
Weight
|
GA30D-BCS-01B
|
18"
|
40"
|
24"-76"
|
3" |
10"
|
8.5"
|
1064lbs
|
GA30D-BCS-02B
|
18"
|
44" |
24"-76" |
3.25" |
9.6" |
10.9" |
1194lbs |
GA30D-BCS-03B
|
18" |
48" |
23"-75" |
3.5" |
9.5" |
13.3" |
1320lbs |
Series GA30D Standard Dimensions:
|
Capacity @ 24" LC
|
Mounting
|
Frame Width
|
AET
|
| 5000lbs |
ITA Class III |
43" |
6" |
Cotton Bale Clamp Variable Dimensions:
|
Model
|
HT (A)
|
Mounting
|
Opening Range
|
Arm Thickness
|
VCG
|
ECG
|
Weight
|
GA30D-BCS-04A
|
18"
|
ITA Class II
|
19.5"-90.5"
|
2" |
9.8"
|
9.8"
|
1562lbs
|
GA30D-BCS-04B
|
18"
|
ITA Class III |
19.5"-90.5" |
2" |
10.2" |
9.8" |
1606lbs |
Cotton Bale Clamp Standard Dimensions:
|
Capacity @ 24" LC
|
Length (B)
|
Frame Width
|
AET
|
| 4000lbs |
27" |
43" |
6" |
Features:
-Clamping, Sideshifting or Revolving Attachment or Cotton, Textiles
-Capacities From 3,500 Lb To 7,500 Lb
-Equalized Arm Travel
-E-Profile Aluminum Frame
-T-Bar Alloy Steel Arm Carriers
-Self Aligning Cylinders
Specifications:
-Sideshifting: 2 hydraulic functions required
-Non-sideshifting: 1 hydraulic function required
-Maximum operating pressure: 2000 PSI
-Recommended flow rate:
GA15D & GA20D 8-12 GPM
GA20D 8-18 GPM
GA30D 8-18 GPM
Options:
-Sideshifting or Non-Sideshifting
-Rotating or Fixed
-Special Opening Ranges
-Arm Sizes
-Quick Change Mounting
-Bolt-on arms
-Solenoid selector valve
-Pressure relief valve
