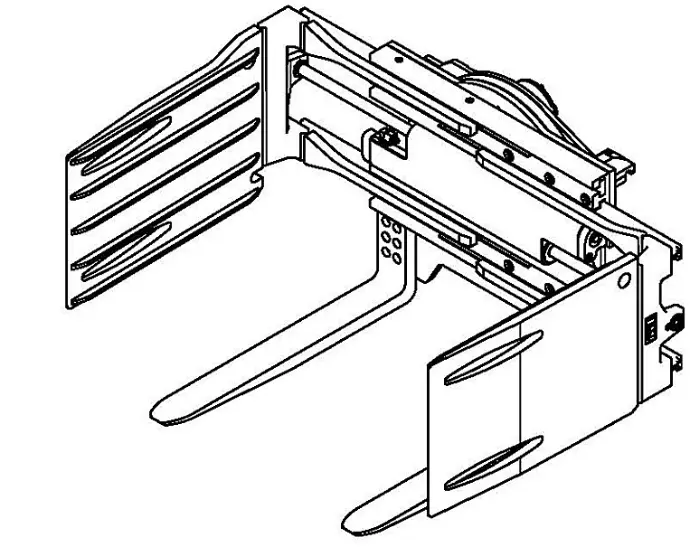

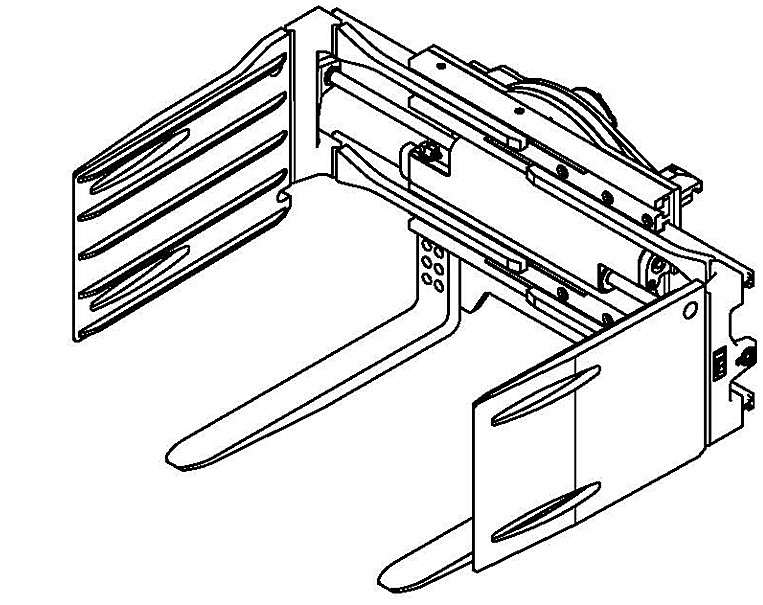

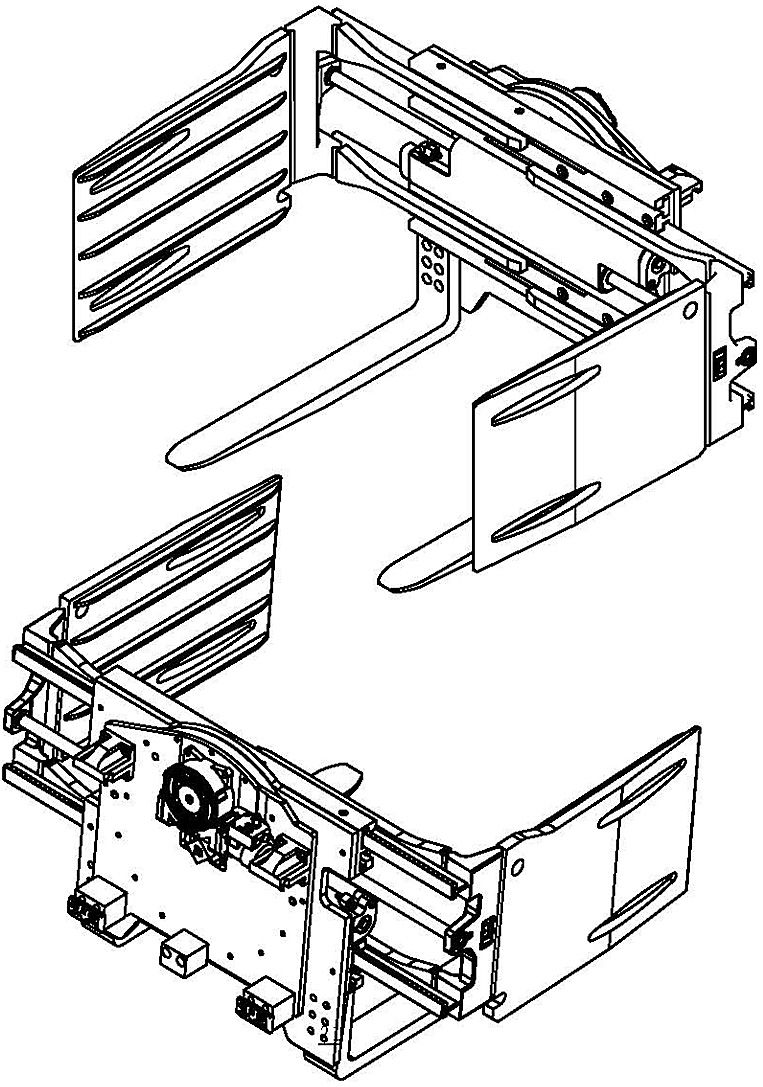

Gaylord Clamps

Features:
Forks assembly bolted to faceplate
Class II or class III mountings
Hydraulic lock valves hold pressure against the load
E-profile, brushed aluminum frame for durability and strength
Various openings and arm lengths available
Various fork sizes available
Arms are rubber covered.  Steel arms available, no rubber.

Specifications:
Rotate & Clamp: 2 hydraulic functions required
Maximum operating psi:  2000 PSI
Recommended flow rate:  8-12   GPM

Options:
Special opening ranges
Arm sizes
Quick change mounting
Solenoid selector valve
Relief valve








Gaylord Clamp


Capacity@
24" LC
Catalog Order No.

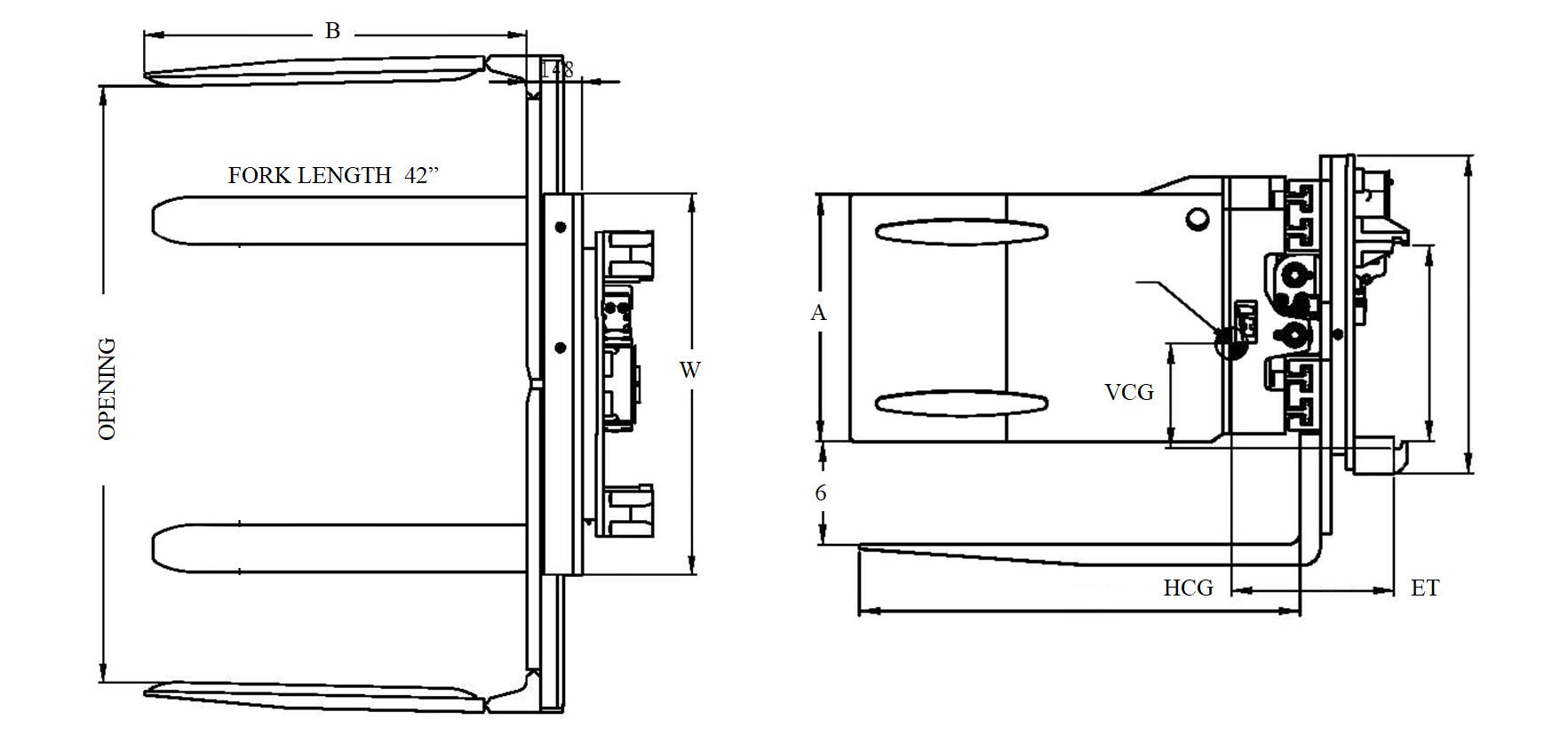

Mounting Class Fork OTO Opening Range Height A Length B Frame W Arm Thick. WT/LB ET HCG
3500
GA20D-GFR-01A
II 34.5 24-64 24 36 40 2.8 1640 14.3 10.6
3500
GA20D-GFR-01B
III 34.5
24-64
24
42 40 2.8 1750 14.6 11.3
5000 GA20D-GFR-02A
II 34.5
24-64
24
44 40 2.8 2310 14.8 9.7
5000 GA20D-GFR-02B
III 34.5
24-64
24
44 40 2.8 2340 14.8 9.8
