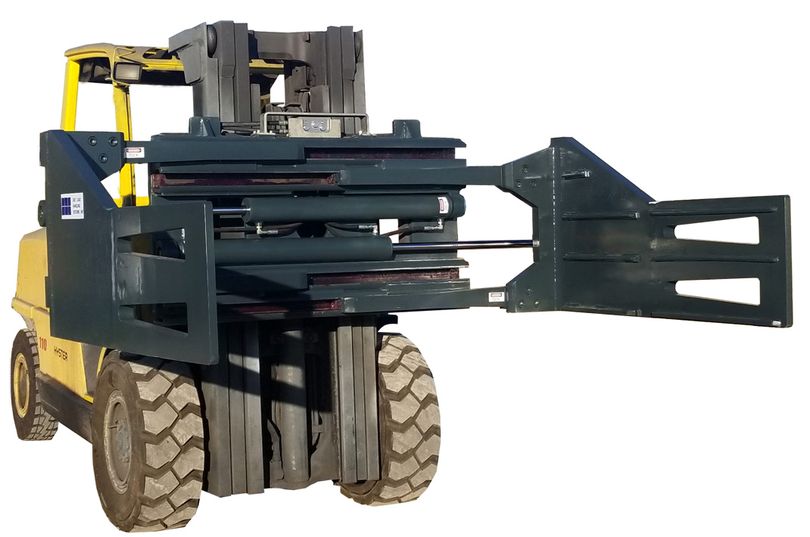

Forklift pulp bale clamp - 16 unit

  • High strength alloy steel arms and arm carrier bars
  • Aluminum bronze arm bushings
  • Powerful hydraulic cylinders
  • Bolted arms and carriers
  • Large, heavy duty gripping ribs.
  • Sideshifting and Non-Sideshifting Available

  • Capacity:  9000 LB @ 30” LC
  • Arm Dims:    55” LONG X  18” High
  • Opening Range:  25”  TO  84"
  • Class IV Mounting
  • WEIGHT:  3024 LB
  • ET / LLC:  9.5”       HCG:  14.1”
  • VCG:  13.64”
  • RECOMMENDED PSI:  2,200
  • RECOMMENDED FLOW:  12-16 GPM

Request a Quote On a 16 Unit Pulp Bale Clamp:

Fork-Co Leads the Pack

With our industry best lead times (4-5 weeks on complex builds), full in-house engineering and design team, on-site manufacturing and fabrication facility just south of Houston, TX, and very large standard product inventory, Fork-Co is the right choice for your project. We stand behind our products 100%, either it accomplishes your goals, or we aren't done.
