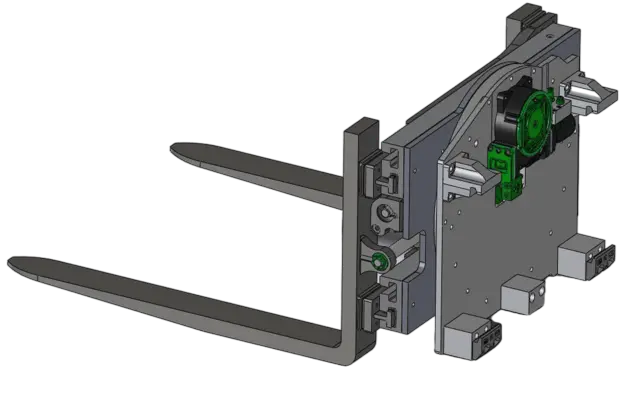

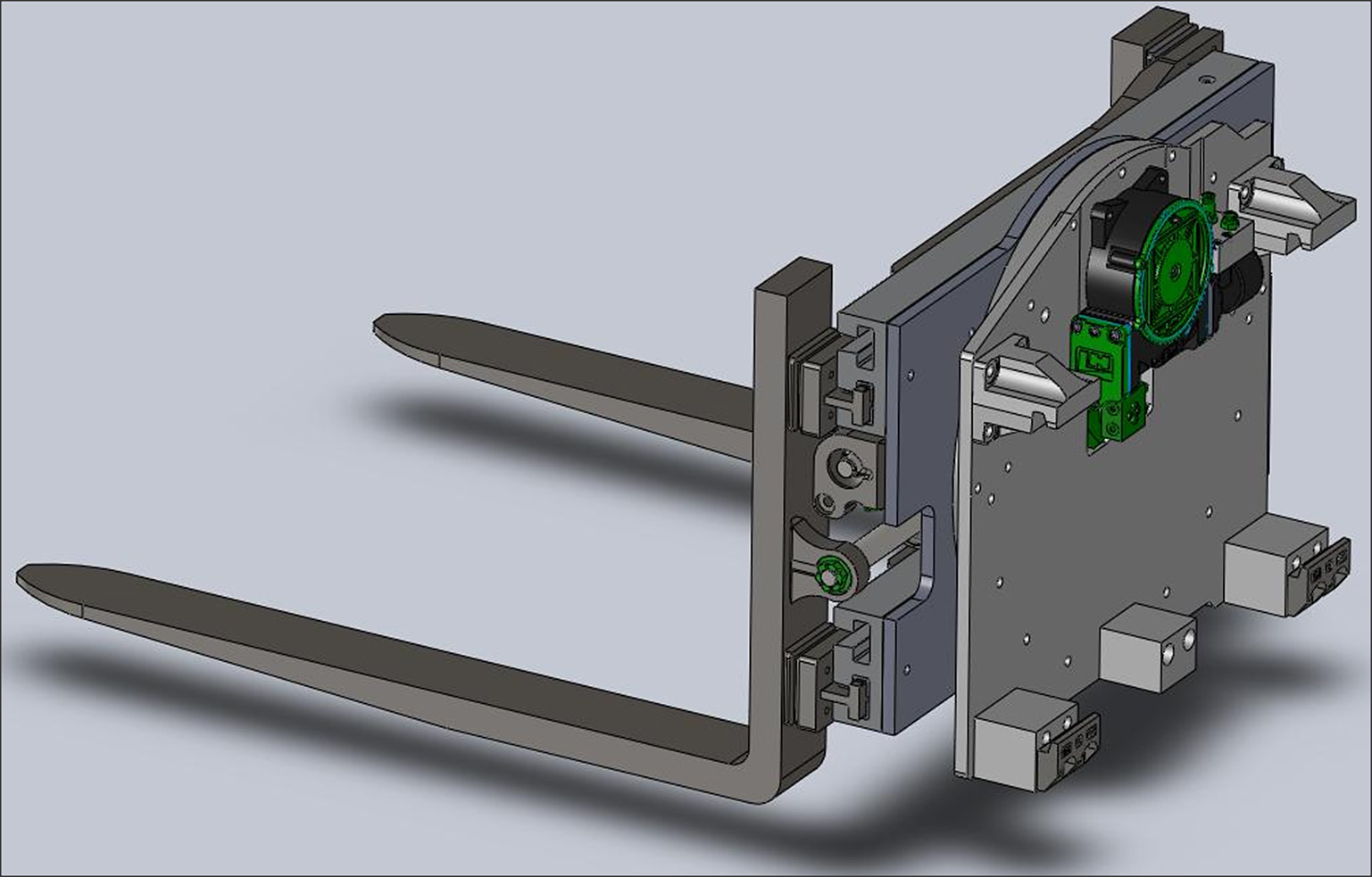

Rotating Pallet Fork Clamps
Fork-Co designs and manufactures forklift Rotating Pallet Fork Clamps with custom configurations,
with Lease & Rental Options, tailored to your exact application and equipment needs.
Rotating Pallet Fork Clamps for Positioning, Clamping & Load Rotation
Fork-Co’s Rotating Pallet Fork Clamps combine fork positioning, clamping, and rotation in one versatile forklift attachment. Operators can adjust fork spacing for palletized goods, grip compatible materials using the clamping function and lock valve, and rotate loads for repositioning during processing, storage, or transfer.
With capacities from 3,500 to 7,000 pounds, these rotating forklift fork clamps support demanding applications in recycling facilities, scrap yards, foundries, manufacturing, warehousing, and stevedoring operations. Various fork lengths and custom opening ranges accommodate different load dimensions. Optional slip-on arms expand handling capabilities for drums, boxes, bales, bricks, and blocks.
An E-profile aluminum frame, T-bar alloy steel arm carriers, and self-aligning cylinders support everyday material handling demands. Lube-free contoured arm bearings and a cylinder protection bumper complement the design. Standard bolt-on mounting and optional quick-change mounting provide installation options, while specialized forks and contact pads help tailor the attachment to your materials.
Description & Usage
Fork-Co’s Rotating Pallet Fork Clamps allow operators to position forks, clamp compatible loads, and rotate materials with a single attachment. They support pallet handling and specialized gripping tasks across industrial operations.
- Capacities from 3,500 to 7,000 pounds
- Fork positioning, clamping, and load rotation
- Lock valve supports gripping and lifting
- Various fork lengths and custom opening ranges
- Self-aligning cylinders and lube-free contoured arm bearings
- Optional slip-on arms, contact pads, drum forks, and tire forks
Common uses include recycling, scrap handling, waste bale movement, manufacturing, warehousing, and wide-load handling. Additional options include drum-handling fork cut-outs, quick-change mounting, a solenoid selector valve, and a pressure relief valve.
- Various fork lengths available
- Slip-on arms available to handle drums, boxes, bales, bricks, and blocks
- Fork cut-outs available for drum handling
- Custom opening ranges available
- Bolt-on mounting standard/Quick change mount optional
- Solenoid selector valve
- Pressure relief valve
- Slip-on contact pads
- Drum forks
- Tire forks
- Side shifting: 2 hydraulic functions required
- Non-side shifting: 1 hydraulic function required
- Maximum operating pressure: 2000 PSI
- Recommended flow rate:
- GA19D & GA20D 8-12 GPM
- GA30D 8-14 GPM
- More uses than a fork positioner
- Grip and lift using the lock valve
- Fork Positioning
- Clamping
- Capacities From 3,500 Lb to 7,000 Lb
- E-Profile Aluminum Frame
- T-Bar Alloy Steel Arm Carriers
- Self-Aligning Cylinders
- Lube-Free Contoured Arm Bearings
- Cylinder Protection Bumper

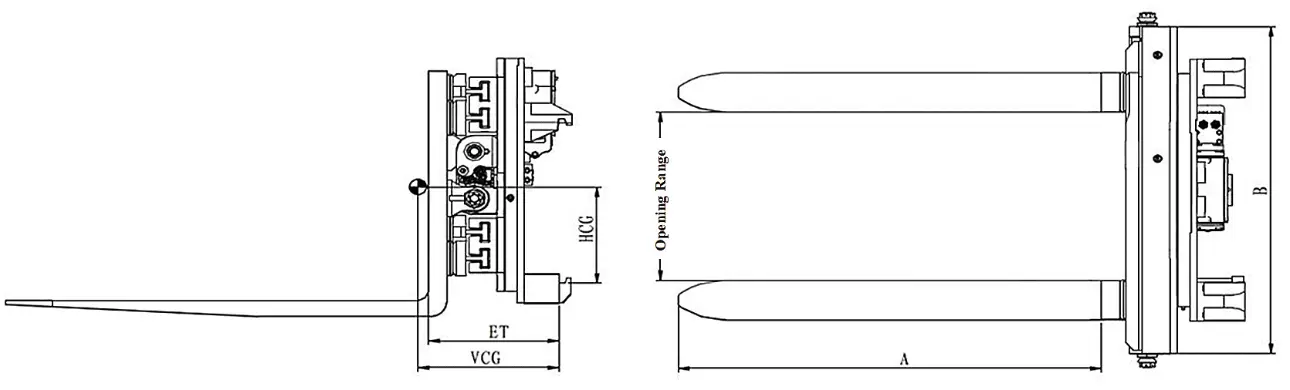

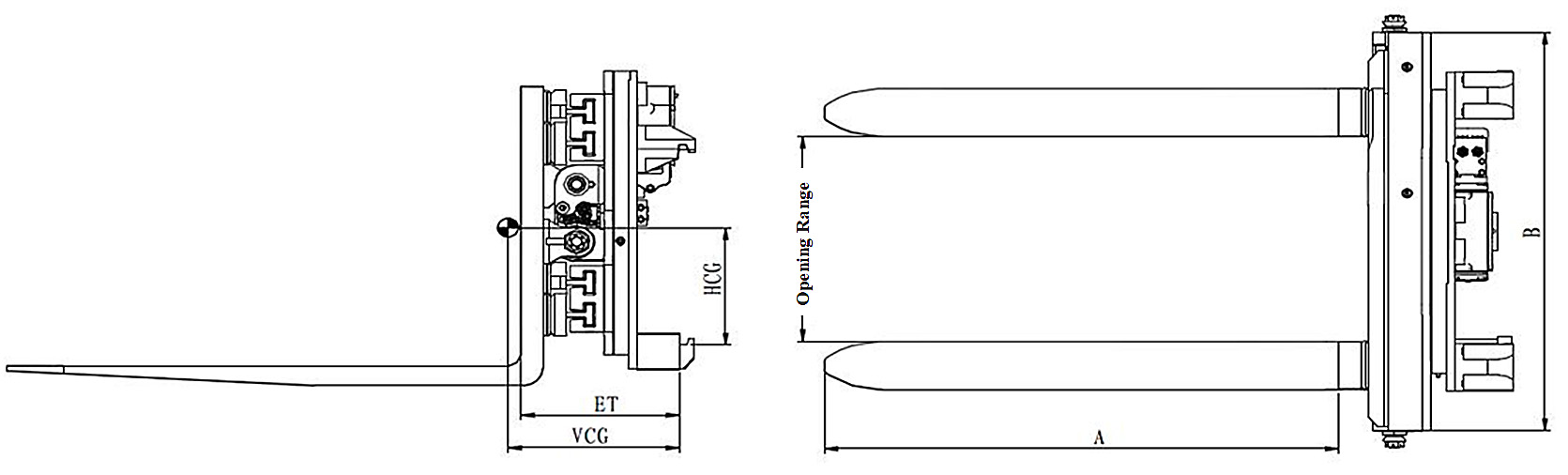

Pallet Fork Clamp Rotating
|
Capacity LB @24” L |
Catalog Order No. |
Mounting Class |
Opening Range |
Fork Length X
|
Frame
|
Vertical
|
Weight
|
Effective
|
Horizontal
|
|
3500 |
GA19D-FCR-01A |
II |
16.1 - 65.3 |
36 |
37 |
11 |
1235 |
11.3 |
7.4 |
|
3500 |
GA19D-FCR-02A |
II |
16.1 - 65.3
|
42 |
42 |
10.8 |
1275 |
11.3 |
8.4 |
|
3500 |
GA19D-FCR-03A |
II |
16.1 - 65.3
|
48 |
48 |
10.4 |
1315 |
11.3 |
9.1 |
|
5000 |
GA20D-FCR-01A |
II |
17.3 - 70.3 |
36 |
42 |
10.9 |
1510 |
12 |
8.8 |
|
5000 |
GA20D-FCR-01B |
III |
17.3 - 70.3
|
36 |
42 |
10.9 |
1550 |
13.6 |
10.3 |
|
5000 |
GA20D-FCR-02A |
II |
17.3 - 70.3
|
42 |
48 |
10.8 |
1530 |
12 |
9.38 |
|
5000 |
GA20D-FCR-02B |
III |
17.3 - 70.3
|
42 |
48 |
10.8 |
1570 |
13.6 |
11.3 |
|
7000 |
GA30D-FCR-01B
|
III |
16.6 - 77
|
48 |
48 |
12.8 |
2200 |
13.8 |
9.3 |
|
7000 |
GA20D-FCR-01C |
IV |
16.6 - 77
|
48 |
48 |
10 |
2380 |
16.2 |
10.2 |
