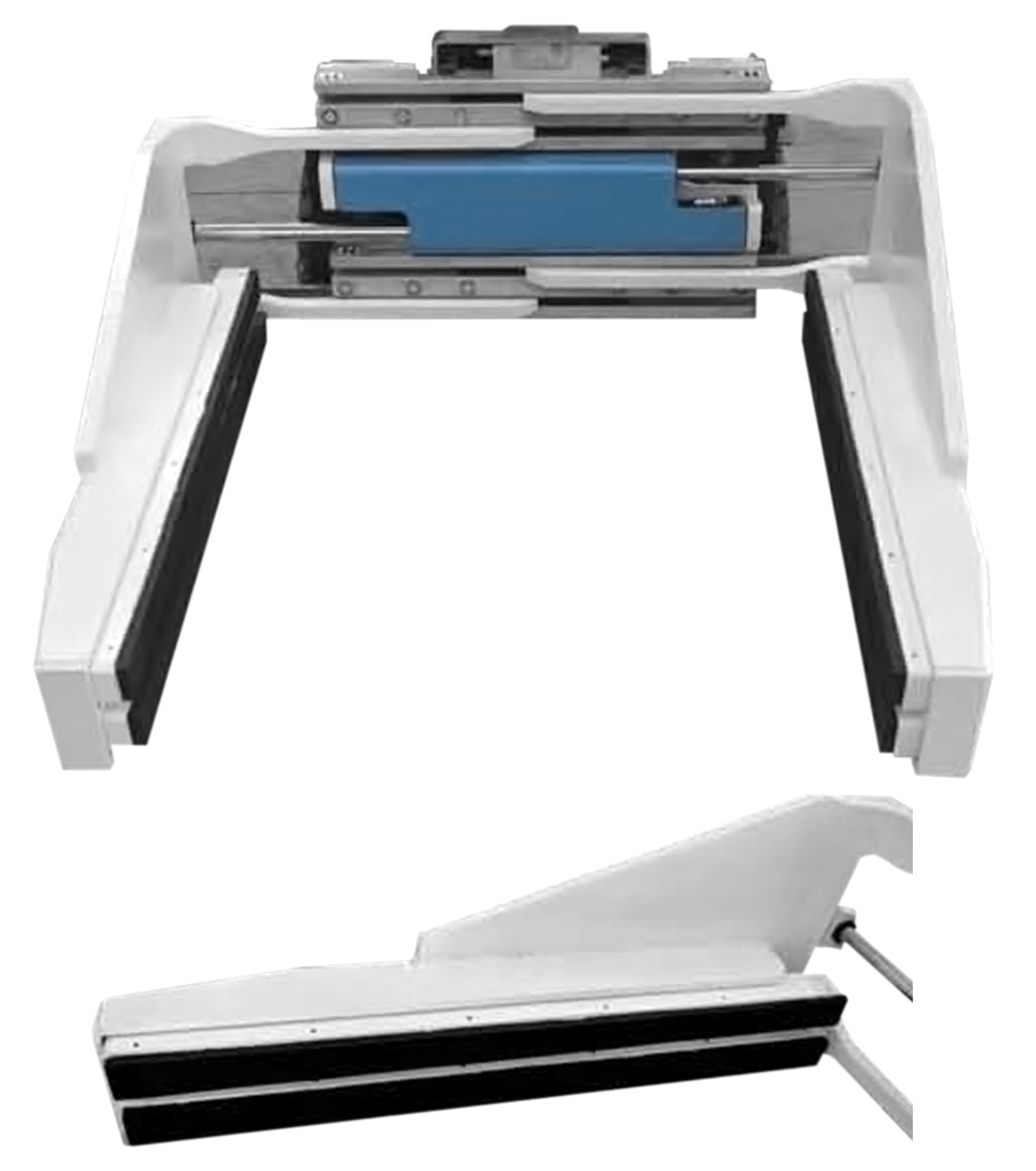

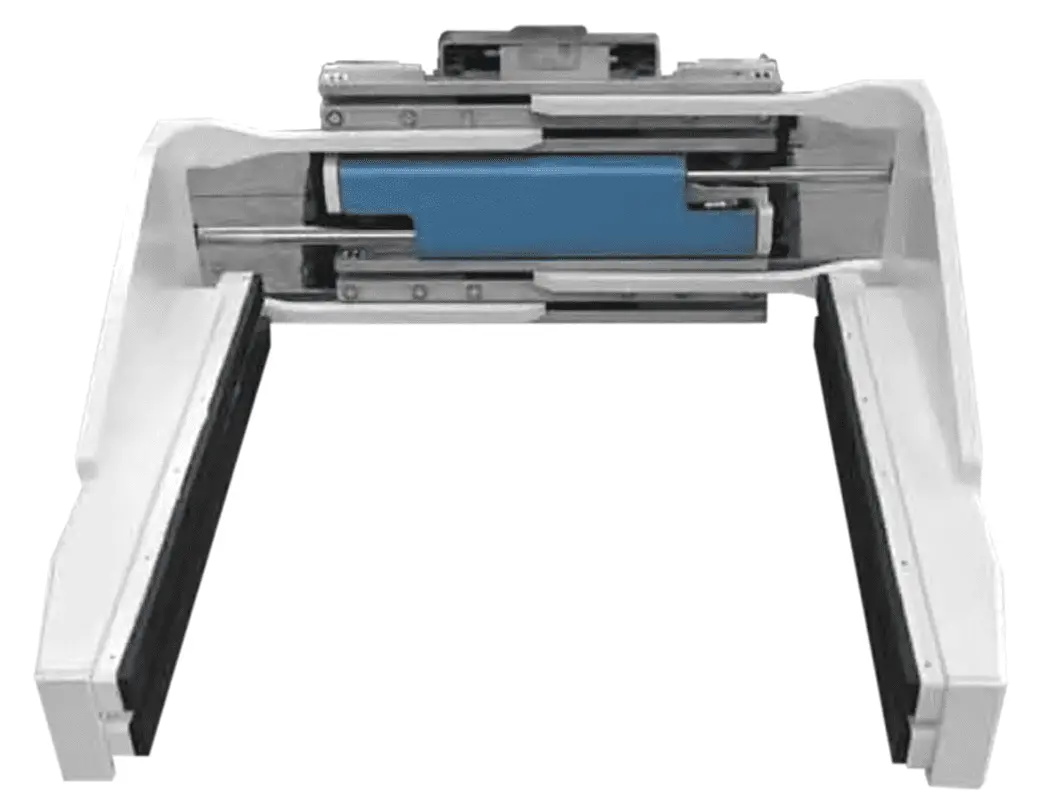

Block and Building Materials Clamp

Features:
48 Inch long Forks
Class II or class III mountings
Sideshifting or non-sideshifting
Hydraulic lock valves hold pressure against the load
E-profile, brushed aluminum frame for durability and strength
Various openings and arm lengths available

Specifications:
Sideshifting:  2 hydraulic functions required
Non-sideshifting:  1 hydraulic function required
Maximum operating pressure:  2000 PSI
Recommended flow rate:  8-12   GPM

Options:
Special opening ranges
Arm sizes
Quick change mounting
Solenoid selector valve
Relief valve






Block and Building Materials Clamp

Capacity@
24" LC
Catalog Order No.
Mounting
Class
OAH
Frame

Opening Range Arm Height Arm
Length
Frame Width Arm Thick. VCG WT/LB
ET
HCG
5000
GA30D-CKS-01A
II 28 12-60 5 44 40 8 8.7 1100 5.7 8.7
5000
GA30D-CKS-01B
III 28
12-60
5
44 40 8 8.7
1100 6 8.7
5000 GA30D-CKS-02A
II 28
12-60
9.5
44 40 8 8.7
1210 5.7 8.7
5000 GA30D-CKS-02B
III 28
12-60
9.5
44 40 8 8.7
1210 6 8.7
