Multi-Purpose & Rigid Arm Carton Clamps

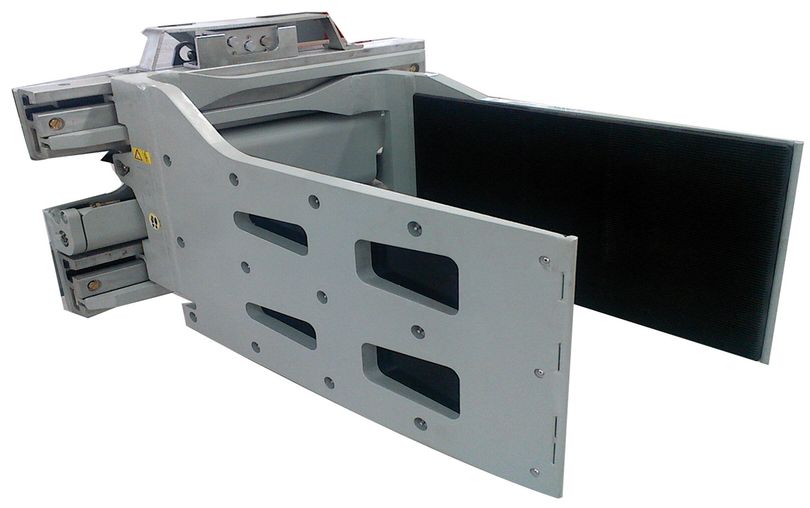

Multi-purpose & rigid arm carton clamps are used for handling pallet-less corrugated fiberboard cartons and boxes, wooden bins and crates, totes and lugs, and in many bale applications where totes, bins, Gaylords, etc., are common. The arm's surface is aluminum bonded to vulcanized grooved rubber to ensure a secure grip and long life. The bolted rubber surface is replaceable. Available in standard and custom opening ranges as well as custom arm lengths and heights. Arms have a very thin profile for easy load entry. Tips of the arms are protected by steel guards to preserve the surface integrity.
- Side shifting, non-side shifting, And Revolving
- Capacities From 3,000 Lb to 7,000 Lb
- Adjustable Arm Travel Speeds

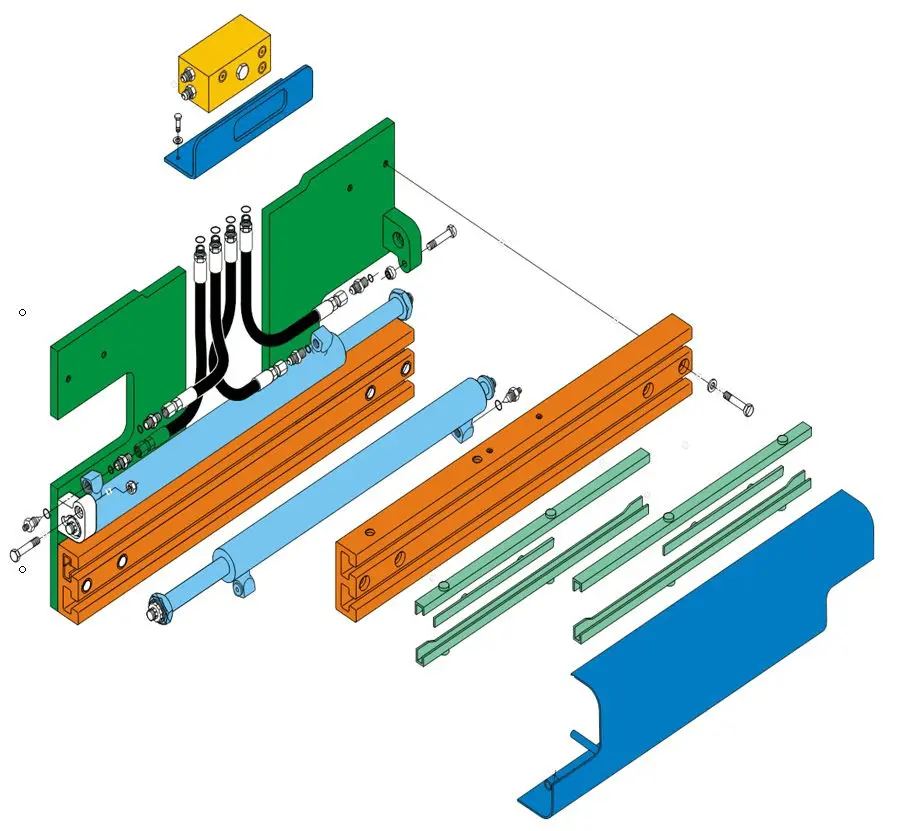

- E-Profile Aluminum Frame
- T-Bar Alloy Steel Arm Carriers
- Self-Aligning Cylinders
- Lube-Free Contoured Arm Bearings
- Cylinder Protection Bumper
- Steel Abrasion Protection
-
Proven Design
- Side shifting: 2 hydraulic functions required
- Non-side shifting: 1 hydraulic function required
- Revolving: 2 hydraulic functions required
- Maximum operating pressure: 2000 PSI.
-
Recommended flow rate:
GBC19D 6-10GPM
GBC27D 10-14 GPM
- Special Opening Ranges
- Arm Sizes
- Quick Change Mounting
- Bolt-on Arms
- Solenoid Selector Valve
- Relief Valves
-
Segmented Pads
NOTE: The capacity of the truck with an attachment may be less than the attachment capacity shown here. Always consult the forklift manufacturer for actual capacity.
|

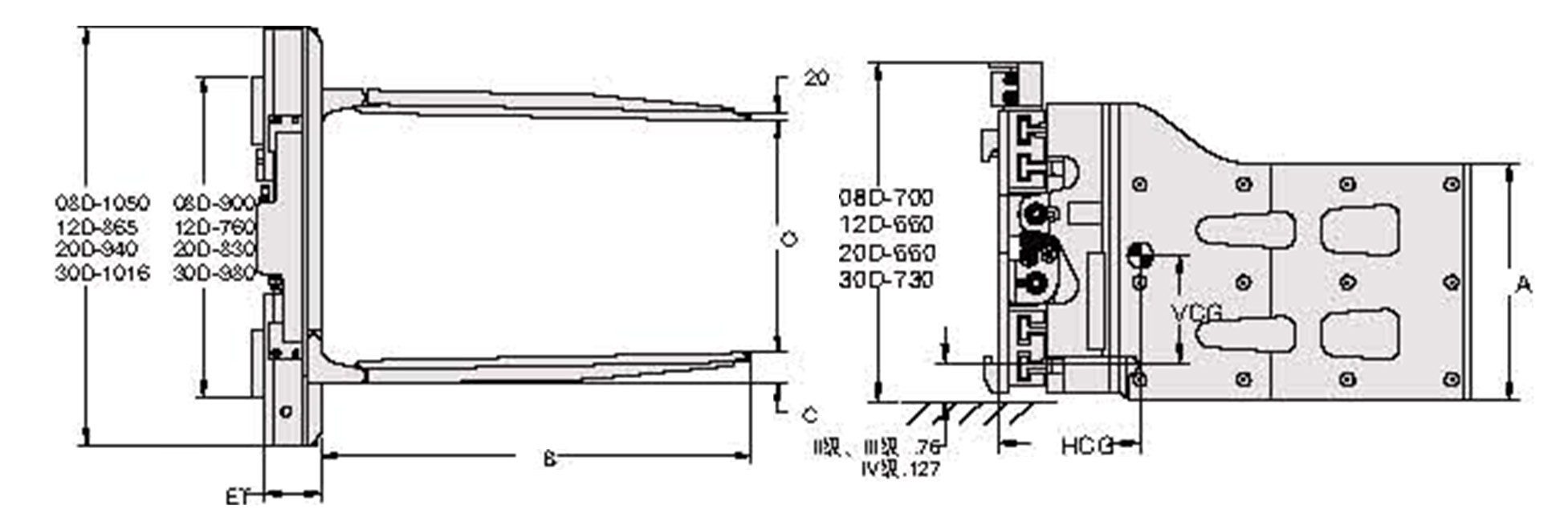

Capacity @24" LC |
Catalog Order No. | Mounting Class |
Opening Range |
HT A |
LGTH B |
Frame W |
Arm Thick. |
VCG | WT/LB | ET | HCG |
| 1500 |
GA08D-MCS-01A |
II | 17.5-66.5 | 15 | 36 | 42 | 1.75 | 10.1 | 540 | 5 | 13.8 |
| 2500 |
GA12D-MCS-01A |
II | 18-63 | 18 | 40 | 35 | 2.1 | 10.5 | 1023 | 5 | 15.5 |
| 2500 |
GA12D-MCS-02A |
II | 20.75-69 | 18 | 48 | 35 | 2.5 | 8.75 | 1045 | 5 | 15.6 |
| 3500 |
GA20D-MCS-05A |
II | 21.5-70.8 | 18 | 36 | 41 | 2 | 10 | 850 | 5 | 1105 |
| 3500 |
GA20D-MCS-02A |
II | 22-70 | 18 | 40 | 41 | 2.5 | 9.3 | 1047 | 5 | 14 |
| 3500 |
GA20D-MCS-01A |
II | 21.5-69.5 | 24 | 44 | 41 | 3 | 9.5 | 1040 | 5 | 14.6 |
| 3500 |
GA20D-MCS-06A |
II | 22-70 | 24 | 48 | 41 | 3.5 | 9.8 | 954 | 5 | 15.2 |
| 5000 | GA30D-MCS-01B |
III | 24-76 | 18 | 36 | 43 | 3 | 10 | 1064 | 6 | 8.5 |
| 5000 |
GA30D-MCS-02B |
III | 23.5-75.5 | 18 | 42 | 43 | 3.25 | 9.8 | 1194 | 6 | 10.9 |
| 5000 |
GA30D-MCS-03B |
III | 23-75 | 18 | 48 | 43 | 3.5 | 9.6 | 1320 | 6 | 13.3 |
