FE2-24 2x5x95
Fork-Co: 2-PCS 2x5x95 Fork Sleeves Galvanized Finish

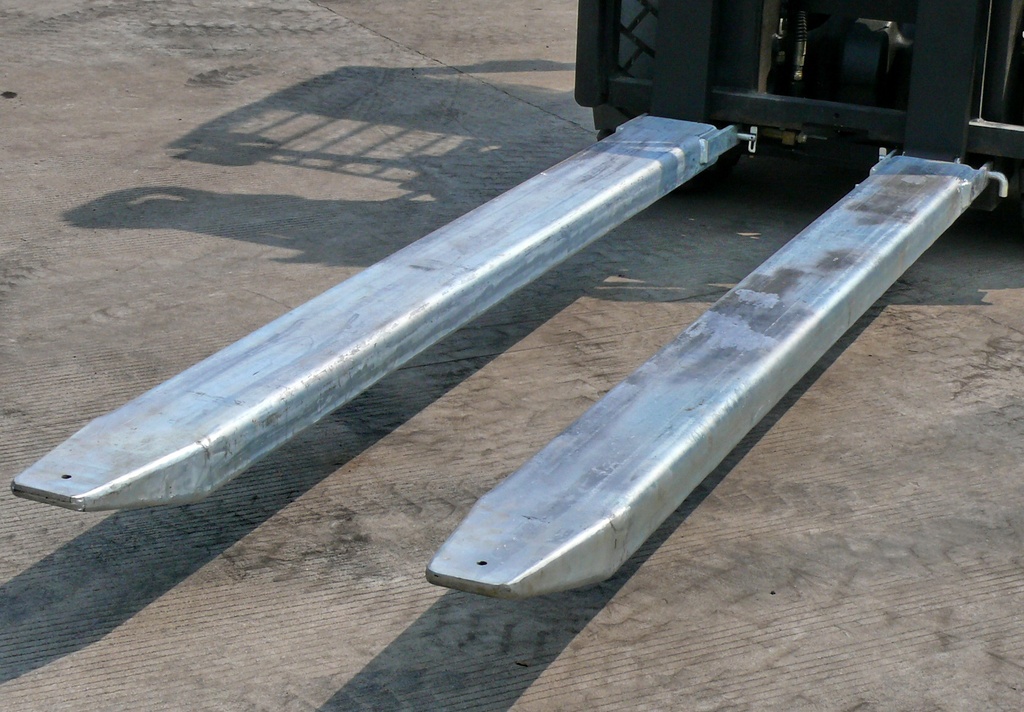

Heavy Duty Fork Extensions - Model FE2-24 - 2.00" x 5" x 95"
Fork-Co Heavy Duty Fork Extensions are heavy duty load handlers that can lift non uniform loads with adequate capacity to prevent bending. Heavy Duty Fork Extensions are installed on the forklift by driving into the Sleeve and inserting a lock pin behind the fork heel. They are secured to the fork by locking pins. Tips are tapered to assist entry. Heavy Fork Extensions are often an economical alternative to extra long fork blades. The forklift can be used for general cargo as well as cumbersome, hard to handle products by installing and removing the Heavy Duty Fork Extensions.
Need something more economical? Standard Fork Extensions Still not big enough for your application? Extreme Duty Fork Extensions
Other Common Sizes:
Model Number | Length | Fork Width (Max) | Fork Thickness (Max) | Weight (Pair) | Buy Now |
FE2-16 | 63" (63 Inches) | 5.00" (5 Inches) | 2.00" (2 Inches) | 130 lbs | Click here to Buy Now |
FE2-18 | 72" (72 Inches) | 5.00" (5 Inches) | 2.00" (2 Inches) | 150 lbs | Click here to Buy Now |
FE2-21 | 84" (84 Inches) | 5.00" (5 Inches) | 2.00" (2 Inches) | 170 lbs | Click here to Buy Now |
FE2-24 | 96" (96 Inches) | 5.00" (5 Inches) | 2.00" (2 Inches) | 194 lbs | Click here to Buy Now |
FE2-30 | 120" (120 Inches) | 5.00" (5 Inches) | 2.00" (2 Inches) | 245 lbs | Click here to Buy Now |
Model Series | Capacity @ 24" LC | Capacity @ 48" LC | Capacity @ 60" LC | Capacity @ 72" LC | Capacity @ 96" LC |
FE2-Series | 4960 lbs (Each Fork) | 2480 lbs (Each Fork) | 1984 lbs (Each Fork) | 1626 lbs (Each Fork) | 1220 lbs (Each Fork) |
Specifications
Extension Type | Heavy Duty (Full Box) |
Extension Thickness (ID) | 2" (2 Inches) |
Extension Width (ID) | 5" (5 Inches) |
Extension Length (Total) | 95" (95 Inches) |
