FE1-16 1.75x4x63


Fork-Co: 2-PCS, 1.75x4x63 Fork Sleeves Galvanized Finish

560.00 560.0 USD 560.00


0% Off

Not Available For Sale

  • Extension Type
  • Extension Thickness (ID)
  • Extension Width (ID)
  • Extension Length (Total)

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

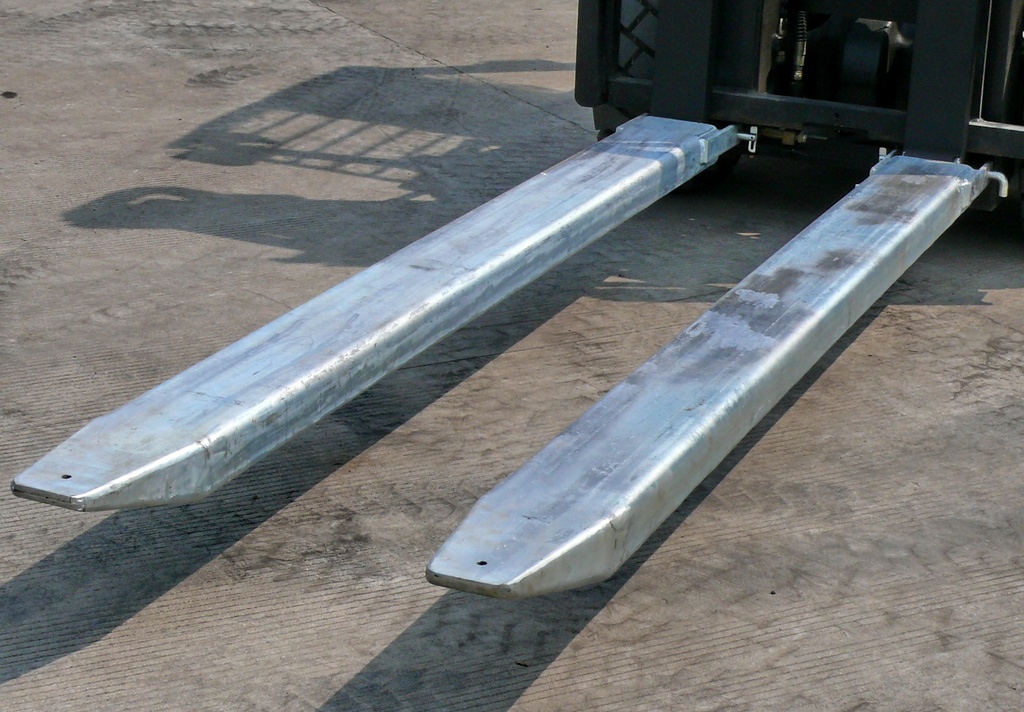

Heavy Duty Fork Extensions - Model FE1-16 - 1.75" x 4" x 63"

Fork-Co Heavy Duty Fork Extensions  are heavy duty load handlers that can lift non uniform loads with adequate capacity to prevent bending. Heavy Duty Fork Extensions are installed on the forklift by driving into the Sleeve and inserting a lock pin behind the fork heel.  They are secured to the fork by locking pins. Tips are tapered to assist entry. Heavy Fork Extensions are often an economical alternative to extra long fork blades.  The forklift can be used for general cargo as well as cumbersome, hard to handle products  by installing and removing the Heavy Duty Fork Extensions.

Need something more economical?    Standard Fork Extensions                   Still not big enough for your application?  Extreme Duty Fork Extensions

Other Common Sizes:
Model Number
Fork Width (Max)
Fork Thickness (Max)
Weight (Pair)
Buy Now
FE1-1663" (63 Inches)4.00" (4 Inches)1.75" (1.75 Inches)110 lbsClick here to Buy Now
72" (72 Inches)4.00" (4 Inches)
1.75" (1.75 Inches)
126 lbsClick here to Buy Now
84" (84 Inches)4.00" (4 Inches)
1.75" (1.75 Inches)
134 lbsClick here to Buy Now
96" (96 Inches)4.00" (4 Inches)
1.75" (1.75 Inches)
165 lbsClick here to Buy Now
120" (120 Inches)4.00" (4 Inches)
1.75" (1.75 Inches)
219 lbsClick here to Buy Now
Model Series
Capacity @ 24" LC
Capacity @ 48" LC
Capacity @ 60" LC
Capacity @ 72" LC
Capacity @ 96" LC
FE1-Series2730 lbs (Each Fork)1364 lbs (Each Fork)
1091 lbs (Each Fork)
894 lbs (Each Fork)
671 lbs (Each Fork)


Extension Type Heavy Duty (Full Box)
Extension Thickness (ID) 1.75" (1.75 Inches)
Extension Width (ID) 4" (4 Inches)
Extension Length (Total) 63" (63 Inches)
