FE165-90 6x90
Fork-Co: 2-PCS. 6x90 Open Extension

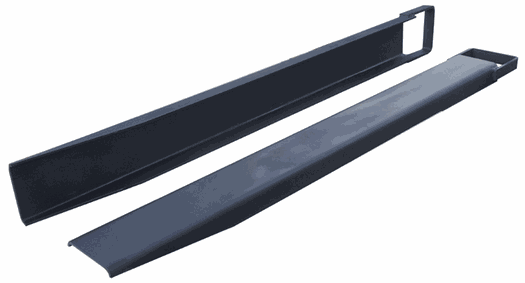

Standard Fork Extensions - Model FE1165-90 - 6" Wide x 90" Long
Fork extensions are used to extend the usable length of forks. Open bottom extensions should not be longer than 150% of the original fork length. Loads must be uniformly distributed along the length of the extension and must not have load concentrations beyond the tips of the truck's forks. Extensions are rated at the capacity of the installed maximum fork size at a load center that is 50% of the extension length. Standard Fork Extensions are not designed for tip loading or prying
Need something more robust? Heavy Duty Fork Extensions
Other Common Sizes:
Model | Fork Width Max | Fork Thickness | Extension Length | Weight (Pair) | Buy Now |
FE165-48 | 6" (6 Inches) | 1.75" - 2.50" | 48" (48 Inches) | 87 lbs | Click here to Buy Now |
FE165-54 | 6" (6 Inches) | 1.75" - 2.50" | 54" (54 Inches) | 96 lbs | Click here to Buy Now |
FE165-60 | 6" (6 Inches) | 1.75" - 2.50" | 60" (60 Inches) | 109 lbs | Click here to Buy Now |
FE165-63 | 6" (6 Inches) | 1.75" - 2.50" | 63" (63 Inches) | 111 lbs | Click here to Buy Now |
FE165-72 | 6" (6 Inches) | 1.75" - 2.50" | 72" (72 Inches) | 132 lbs | Click here to Buy Now |
FE165-84 | 6" (6 Inches) | 1.75" - 2.50" | 84" (84 Inches) | 154 lbs | Click here to Buy Now |
FE165-90 | 6" (6 Inches) | 1.75" - 2.50" | 90" (90 Inches) | 169 lbs | Click here to Buy Now |
FE165-96 | 6" (6 Inches) | 1.75" - 2.50" | 96" (96 Inches) | 176 lbs | Click here to Buy Now |
Specifications
Extension Type | Standard (Open Bottom) |
Extension Width (ID) | 6" (6 Inches) |
Extension Length (Total) | 90" (90 Inches) |
