SLEEVE FORKS  are heavy duty load handlers that can lift non uniform loads with adequate capacity to prevent bending.  They were developed for use in Europe where trucks are side loaded at ground level due to the lack of loading dock facilities.

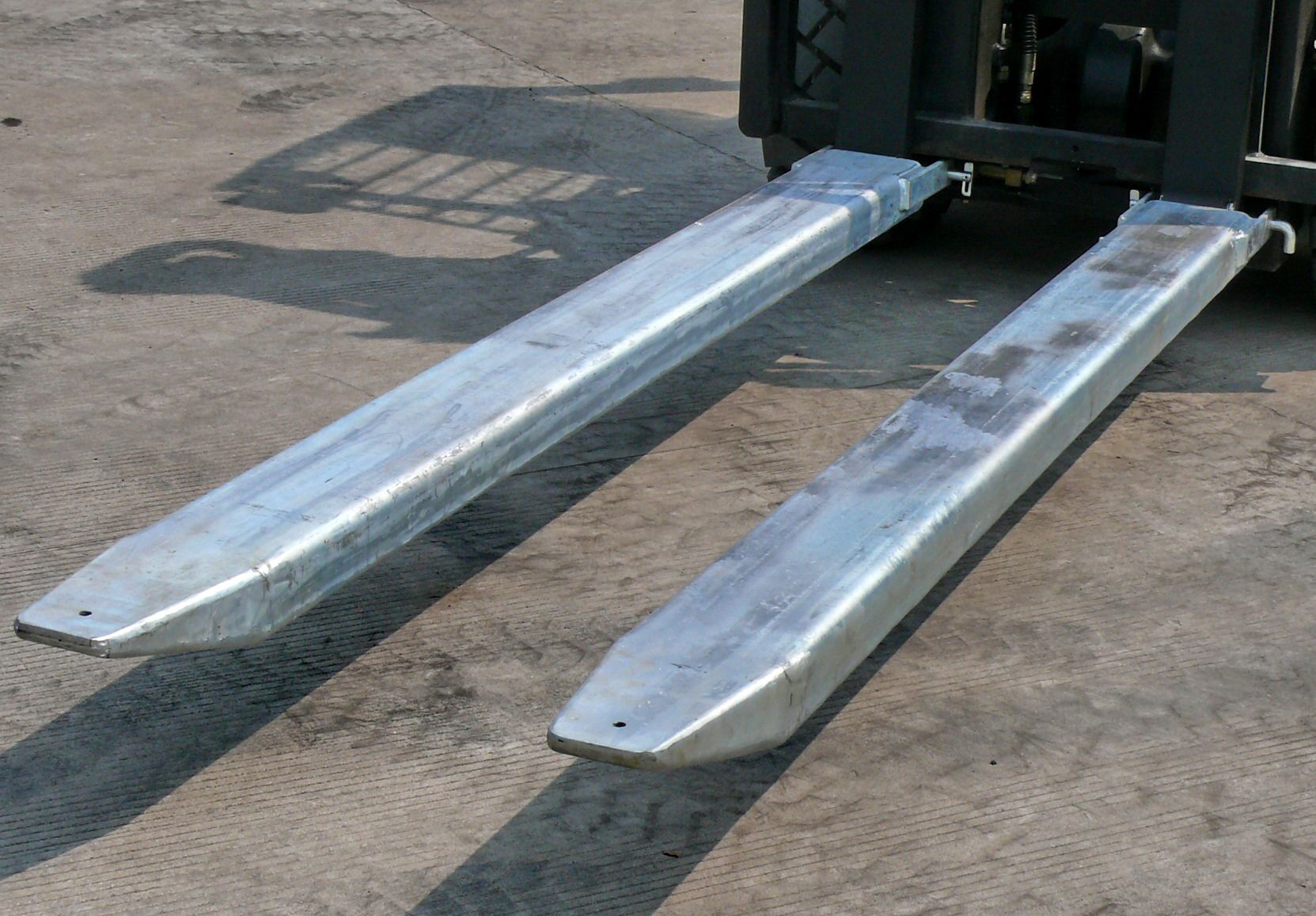

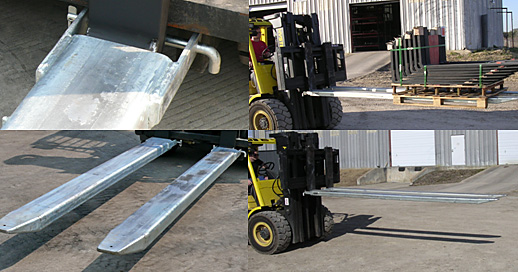

SLEEVE FORKS are installed on the forklift by driving into the Sleeve.  They are secured to the fork heel by locking pins. Tips are tapered to assist entry.

Heavy duty SLEEVE FORKS are often an economical alternative to extra long fork blades.  The forklift can be used for general cargo as well as cumbersome, hard to handle products  by installing and removing Fork Sleeves.

Stock sizes range up to 10 feet long for up to 2-1/2" thick x 6 inch wide forks.  We have produced custom sizes up to 100,000 LB capacity and  16 feet long.

Heavy Duty Sleeve Forks - Capacity rated tubular forks for increased length with strength

ModelLength in InchesFork W. Max.Fork Th. MaxWt Lb Pair
FE1-166341.75110
FE1-18
7241.75
126
FE1-16
8441.75
134
FE1-21
9641.75
165
FE1-30
12041.75
119
FE2-16 63 5 2 130
FE2-18
72 5 2 150
FE2-21
84 5 2 170
FE2-24
96 5 2 194
FE2-30
120 5 2 245
FE3-16 63 6 2 200
FE3-18
72 6 2 224
FE3-21
84 6 2 262
FE3-24
96 6 2 300
FE3-30
120 6 2 379
FE4-16
63 6 2.5 245
FE4-18
72 6 2.5 293
FE4-21
84 6 2.5 341
FE4-24
96 6 2.5 390
FE4-30
120 6 2.5 486
FE HD SLEEVE FORK S CAPACITY CHART
The capacities shown are for each fork given in pounds & assumed installed on a 48” long fork of maximum fit @ load centers along the fork sleeves.
Model No.
Load Center Capacity
24"
Load Center Capacity
48"
Load Center Capacity
60"
Load Center Capacity
72"
Load Center Capacity
96"
FE1-30 2730 1364 1091 894 671
FE2-30
4960 2480 1984 1626 1220
FE3-30
7165 3583 2866 2349 1762
FE4-30
9370 4685 3748 3072 2304

Load Center Capacity shown is per fork. Capacity of the forklift may not be assumed from this chart.  Consult forklift mfg. for actual capacity using these sleeves with the forklift.  Capacity ratings may vary from those shown .
