FE140-63 5x63

https://forkco.odoo.com/web/image/product.template/5309/image_1920?unique=0202796

Fork-Co: 2-PCS. 5x63 Open Extensions

500.00 500.0 USD 500.00

500.00

0% Off

Not Available For Sale

  • Extension Type
  • Extension Width (ID)
  • Extension Length (Total)

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

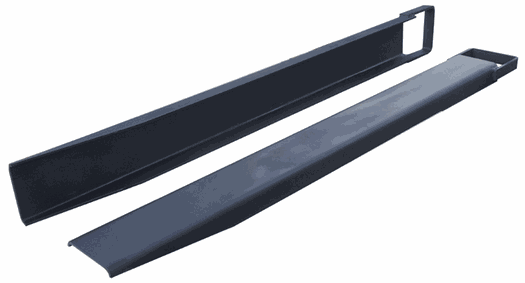

Standard Fork Extensions - Model FE140-63 - 5" Wide x 63" Long

Fork extensions are used to extend the usable length of forks. Open bottom extensions should not be longer than 150% of the original fork length. Loads must be uniformly distributed along the length of the extension and must not have load concentrations beyond the tips of the truck's forks. Extensions are rated at the capacity of the installed maximum fork size at a load center that is 50% of the extension length. Standard Fork Extensions are not designed for tip loading or prying

Need something more robust?    Heavy Duty Fork Extensions


Other Common Sizes
Model
Fork Width Max
Fork Thickness
Extension Length
Weight (Pair)
Buy Now
FE140-485" (5 Inches)1.50" - 2.00"48" (48 Inches)71 lbsClick here to Buy Now
FE140-54
5" (5 Inches)
1.50" - 2.00"
54" (54 Inches)79 lbsClick here to Buy Now
FE140-60
5" (5 Inches)
1.50" - 2.00"
60" (60 Inches)89 lbsClick here to Buy Now
FE140-63
5" (5 Inches)
1.50" - 2.00"
63" (63 Inches)100 lbsClick here to Buy Now
FE140-72
5" (5 Inches)
1.50" - 2.00"
72" (72 Inches)115 lbsClick here to Buy Now
FE140-84
5" (5 Inches)
1.50" - 2.00"
84" (84 Inches)133 lbsClick here to Buy Now
FE140-90
5" (5 Inches)
1.50" - 2.00"
90" (90 Inches)145 lbsClick here to Buy Now
FE140-96
5" (5 Inches)
1.50" - 2.00"
96" (96 Inches)151 lbsClick here to Buy Now

Specifications

Extension Type Standard (Open Bottom)
Extension Width (ID) 5" (5 Inches)
Extension Length (Total) 63" (63 Inches)
