FE140-60 5x60
Fork-Co: 2-PCS. 5x60 Open Extension

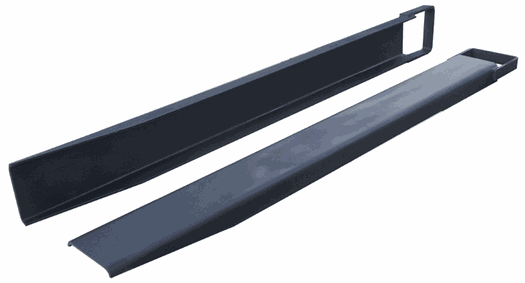

Standard Fork Extensions - Model FE140-60 - 5" Wide x 60" Long
Fork extensions are used to extend the usable length of forks. Open bottom extensions should not be longer than 150% of the original fork length. Loads must be uniformly distributed along the length of the extension and must not have load concentrations beyond the tips of the truck's forks. Extensions are rated at the capacity of the installed maximum fork size at a load center that is 50% of the extension length. Standard Fork Extensions are not designed for tip loading or prying
Need something more robust? Heavy Duty Fork Extensions
Other Common Sizes
Model | Fork Width Max | Fork Thickness | Extension Length | Weight (Pair) | Buy Now |
FE140-48 | 5" (5 Inches) | 1.50" - 2.00" | 48" (48 Inches) | 71 lbs | Click here to Buy Now |
FE140-54 | 5" (5 Inches) | 1.50" - 2.00" | 54" (54 Inches) | 79 lbs | Click here to Buy Now |
FE140-60 | 5" (5 Inches) | 1.50" - 2.00" | 60" (60 Inches) | 89 lbs | Click here to Buy Now |
FE140-63 | 5" (5 Inches) | 1.50" - 2.00" | 63" (63 Inches) | 100 lbs | Click here to Buy Now |
FE140-72 | 5" (5 Inches) | 1.50" - 2.00" | 72" (72 Inches) | 115 lbs | Click here to Buy Now |
FE140-84 | 5" (5 Inches) | 1.50" - 2.00" | 84" (84 Inches) | 133 lbs | Click here to Buy Now |
FE140-90 | 5" (5 Inches) | 1.50" - 2.00" | 90" (90 Inches) | 145 lbs | Click here to Buy Now |
FE140-96 | 5" (5 Inches) | 1.50" - 2.00" | 96" (96 Inches) | 151 lbs | Click here to Buy Now |
Specifications
Extension Type | Standard (Open Bottom) |
Extension Width (ID) | 5" (5 Inches) |
Extension Length (Total) | 60" (60 Inches) |
