Fork-Co: 2-PCS. 4x90 Open Extension

532.00 532.0 USD 532.00

532.00

0% Off

Not Available For Sale

  • Extension Type
  • Extension Width (ID)
  • Extension Length (Total)

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

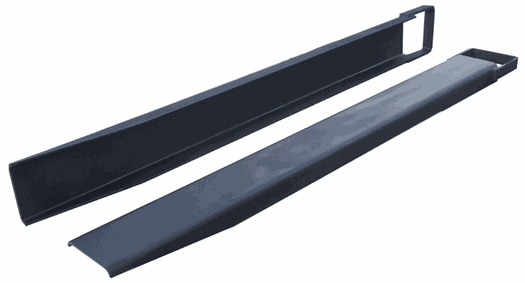

Standard Fork Extensions - Model FE112-90 - 4" Wide x 90" Long

Fork extensions are used to extend the usable length of forks. Open bottom extensions should not be longer than 150% of the original fork length. Loads must be uniformly distributed along the length of the extension and must not have load concentrations beyond the tips of the truck's forks. Extensions are rated at the capacity of the installed maximum fork size at a load center that is 50% of the extension length. Standard Fork Extensions are not designed for tip loading or prying

Need something more robust?    Heavy Duty Fork Extensions


Other Common Sizes:
Model
Fork Width Max
Fork Thickness
Extension Length
Weight (Pair)
Buy Now
FE112-484" (4 Inches)
1.25" - 2.00"48" (48 Inches)49 lbs
Click here to Buy Now
FE112-54
4" (4 Inches)
1.25" - 2.00"
54" (54 Inches)52 lbs Click here to Buy Now
FE112-60
4" (4 Inches)
1.25" - 2.00"
60" (60 Inches)55 lbsClick here to Buy Now
FE112-63
4" (4 Inches)
1.25" - 2.00"
63" (63 Inches)64 lbsClick here to Buy Now
FE112-72
4" (4 Inches)
1.25" - 2.00"
72" (72 Inches)73 lbsClick here to Buy Now
FE112-84
4" (4 Inches)
1.25" - 2.00"
84" (84 Inches)89 lbsClick here to Buy Now
FE112-90
4" (4 Inches)
1.25" - 2.00"
90" (90 Inches)96 lbsClick here to Buy Now
FE112-96
4" (4 Inches)
1.25" - 2.00"
96" (96 Inches)103 lbsClick here to Buy Now

Specifications

Extension Type Standard (Open Bottom)
Extension Width (ID) 4" (4 Inches)
Extension Length (Total) 90" (90 Inches)
