FORK-CO  DISTRIBUTES AND MANUFACTURES QUALITY FORKLIFT ATTACHMENTS AND FORKS.


SERIES WPH-AB PIPE HOLD-DOWN CLAMP

SERIES  WPH-AB  PIPE HOLD-DOWN CLAMP is designed to fit class 2 and class 3 (ITA/FEM/ISO) hook type carriages while retaining the sideshift function, if used, on most forklifts.  The -AB series handles pipe ranging from 2.8 inch diameter up to 20 inch diameter in lengths to 40 feet.  This clamp is easy to install using ITA/FEM standard hooks.

The clamp has zero lost load thickness so the original fork length is retained.  It opens to vertical, allowing the forklift to handle conventional cargo.

All of the clamp hydraulics are installed and this unit ships ready to plug and work.  Give us a call or email us by our contact page. We can review your forklift setup to see if Series WPH-AB is right for your application.


Manufactured by Unit Load Handling Systems, Inc. in Alvin, Texas.



SERIES  - AB CLAMP is adaptable to almost any forklift carriage width.  The clamp can be used with 48" and up to 72" long forks.  It can be quickly removed from the forklift or the clamping arms can move to full vertical for cargo handling.  Options include larger pipe diameters and class 4 mounting.

This model requires only a single hydraulic function from the forklift.


Made in Fork-Co USA's Texas factory under our Unit Load Handling brand.


The WPH-SW-HD Pipe Hold-Down Clamp is a heavy duty clamp for the heavy weight lifters, the  larger forklifts. It is adaptable to  forklift carriages as a retro-fit or to new forklifts. There is no loss of fork length  when installed.

Manufactured in our Alvin, Texas plant bearing our Unit Load Handling Systems brand.

.

36,000 LB through 60,000 LB at 48" load center trucks.  2.75" - 36" diameter range.

Illustrated here is Fork-Co USA's pipe protection system for handling of exotic or coated products such as stainless, Inconnel or elastamer coatings and the like.

PIPE HOLD DOWN CLAMPS
BECAUSE PIPE HANDLING SAFETY SHOULDN'T BE A BALANCING ACT


FORK-CO USA  PIPE HOLD-DOWN CLAMPS ARE DESIGNED TO SECURELY HANDLE A WIDE RANGE OF PIPE DIAMETERS AND LENGTHS.  THEY ARE ADAPTABLE, WITH SEVERAL DIFFERENT DESIGNS, TO MOST ANY FORKLIFT, TELE-HANDLER OR LOADER.

OUR CLAMPS ARE DESIGNED AS PIN TYPE  MOUNTING CONFIGURATIONS.


SOME CAN BE SHIPPED IN KIT FORM. THIS SAVES  SHIPPING EXPENSES FOR EXPORT ORDERS.

CONTACT OUR FACTORY FOR FURTHER INFORMATION.




SERIES   PPC PARALLEL ARM CLAMP  is designed as a clamp to work in cantilever rack on round stock or beams where the overhead clearances restrict the operation of conventional pipe clamps. This model is able to securely hold rounds or beams having different diameters at the clamping contact points. It is available with full 90 degree opening and can clamp in a range from zero to 24" diameters. The PPC operates using just one hydraulic function from the forklift. It is the right solution for any job requiring even clamping across the forks.


PATENT PENDING    Manufactured in Texas by Fork-Co USA  under our Unit Load Handling brand.

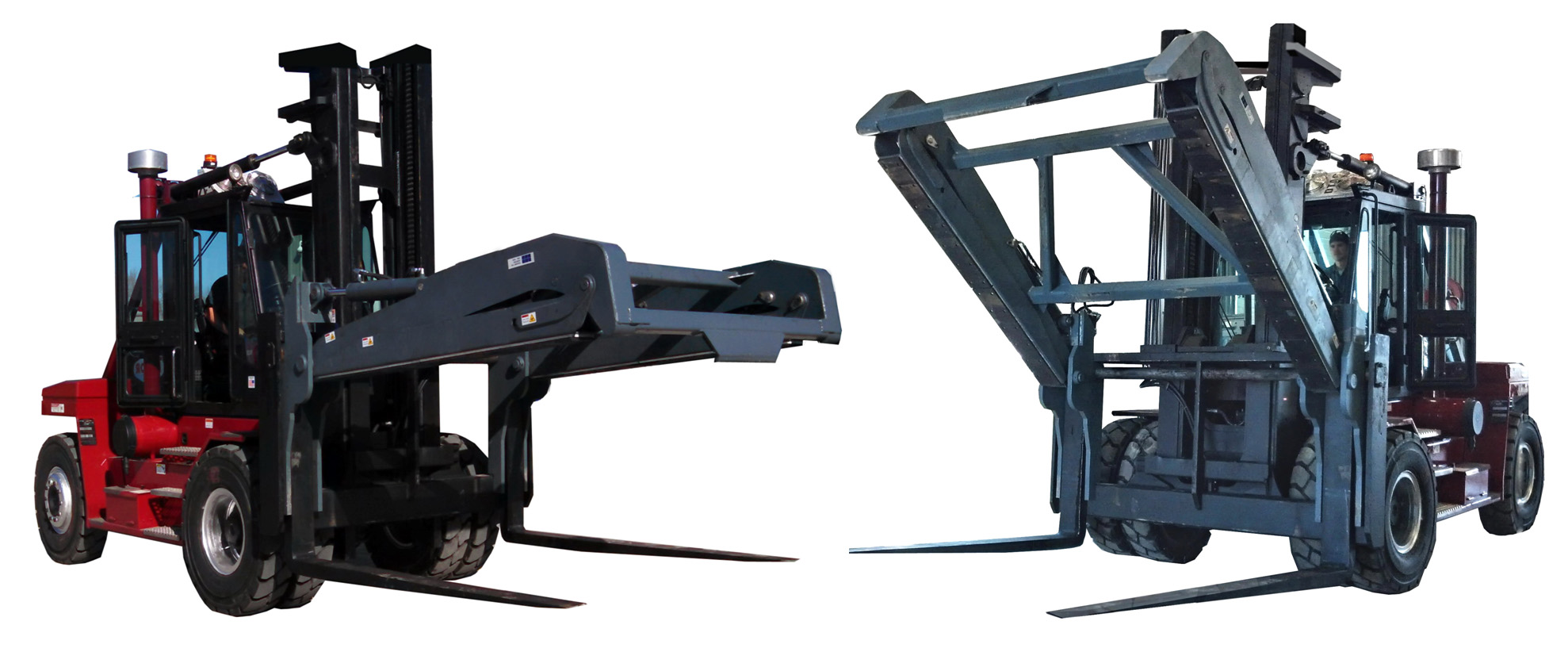

The WPH-SW Pipe Hold-Down Clamp is a robust clamp for most large forklifts. It is adaptable to  forklift carriages as a retro-fit or to new forklifts. There is no loss of usable fork length.

25,000 LB to 36,000 LB at 24" load center trucks.  3" - 36" diameter range. 96" long forks. Built in Texas under our Unit Load Handling Systems brand name.

SERIES   PPH CLAMP  offers a dual hydraulic arm operation for more flexibility in round stock handling. It also retains the economies and convenience of the AB series.  Pipe range is in diameters from 2.75" to 30".  This series is scale-able for forklifts from 5,000 LB capacity up through 25,000 LB capacity.  With increased clamping force, the PPH is ideal for the very rugged work of pipe yards and transportation operations, as well as in the field on the rig site.Requires only one hydraulic function.

Made in Texas by Fork-Co USA's Unit Load Handling brand.


Vertical lift clears the forks for cargo handling​
