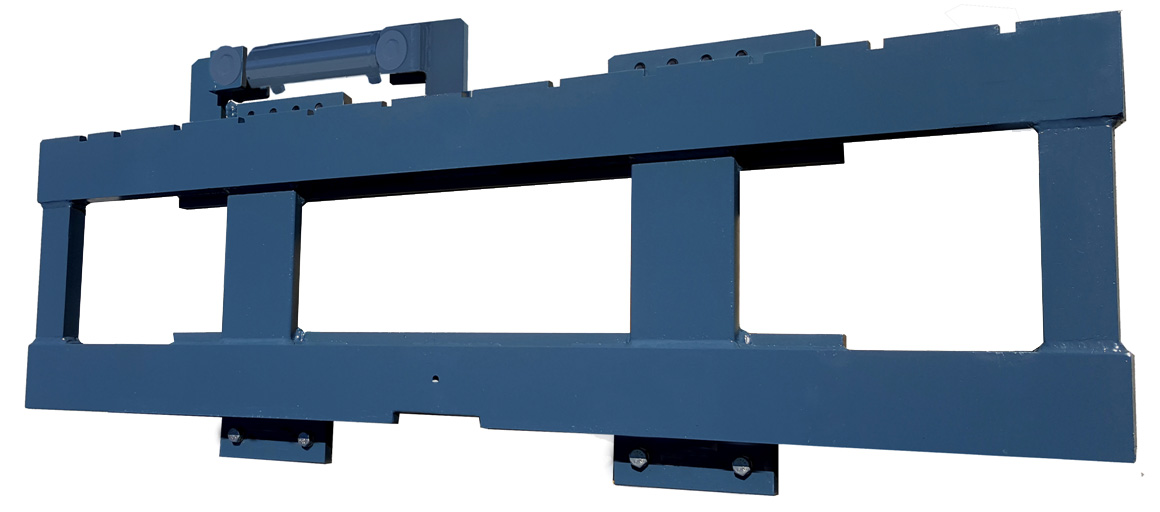

Heavy Duty Side Shifters
FORK-CO's side shifters use bronze upper bearings for long-lasting performance and are resistant to grit, shavings, spills, and weather. Available in classes II, III, and IV and various widths. Custom sizes are also available. Hook-To-Pin models are available on special request. Manufactured and designed in Alvin, TX by FORK-CO
| A | Fork Spread Out to Out |
| B | Fork Spread In to In |
| C | Overall Width |
| HCG | Horizontal Center of Gravity |
| VCG | Vertical Center of Gravity |
| ET | Effective Thickness |
| Model |
Min Truck
Carriage Width
|
Fork Bar
Mounting
Class
|
Total
Side shift
|
A | B | C | HCG | VCG | ET |
Weight
(LBS)
|
| SSAA-C38-55 |
35 | II | 8 | 35 | 0 | 38 | 1.5 | 11 | 2.5 | 225 |
| SSAA-C40-55 |
35 | II | 8 | 37 | 0 | 40 | 1.5 | 11 | 2.5 | 235 |
| SSAA-C43-55 |
35 | II | 8 | 40 | 0 | 43 | 1.5 | 11 | 2.5 | 250 |
| SSAA-C46-55 |
41 | II | 8 | 43 | 0 | 46 | 1.5 | 11 | 2.5 | 265 |
| SSAA-C52-55 |
41 | II | 8 | 49 | 0 | 52 | 1.6 | 11 | 2.5 | 300 |
| SSAA-C62-55 |
48 | II | 8 | 59 | 0 | 62 | 1.6 | 11 | 2.5 | 345 |
|
SSBB-C44-100 |
36 | III | 8 | 41 | 0 | 44 | 2.25 | 13.0 | 3.25 | 315 |
|
SSBB-C50-100 |
40 | III | 8 | 47 | 0 | 50 | 2.25 | 13.0 | 3.25 | 345 |
|
SSBB-C62-100 |
48 | III | 8 | 59 | 0 | 62 | 2.25 | 13.0 | 3.25 | 405 |
|
SSBB-C74-100 |
60 | III | 8 | 71 | 0 | 74 | 2.4 | 13.0 | 3.25 | 525 |
|
SSBB-C98-100 |
60 | III | 8 | 95 | 0 | 98 | 2.4 | 13.0 | 3.25 | 645 |
|
SSCC-C44-155 |
40 | IV | 8 | 41 | 0 | 44 | 2.7 | 18.0 | 4 | 585 |
|
SSCC-C50-155 |
40 | IV | 8 | 47 | 0 | 50 | 2.7 | 18.0 | 4 | 635 |
|
SSCC-C62-155 |
48 | IV | 8 | 59 | 0 | 62 | 2.7 | 18.0 | 4 | 735 |
| SSCC-C74-155 |
60 | IV | 8 | 71 | 0 | 74 | 2.9 | 18.0 | 4 | 835 |
|
SSCC-C98-155 |
60 | IV | 8 | 95 | 0 | 98 | 2.9 | 18.0 | 4 | 1035 |
All measurements are in inches. Forks are not included.
Pin-type heavy-duty side shifters are also available.
Request a Quote
Fork-Co Leads the Pack
With our industry-best lead times (4-5 weeks on complex builds), full in-house engineering and design team, on-site manufacturing and fabrication facility just south of Houston, TX, and vast standard product inventory, Fork-Co is the right choice for your project. We stand behind our products 100%, either it accomplishes your goals, or we aren't done.
