Self Clamping Fork Jib

Cam-Locks to the fork blades.  The heavier the load, the higher the clamping force.  No screws or hand levers to turn.

Odoo • Image and Text

Model CLC1500

Mounted on single fork.
Self-fastening by clamping to fork blade.
Includes safety swivel cargo hook and shackle.
Galvanized finish.

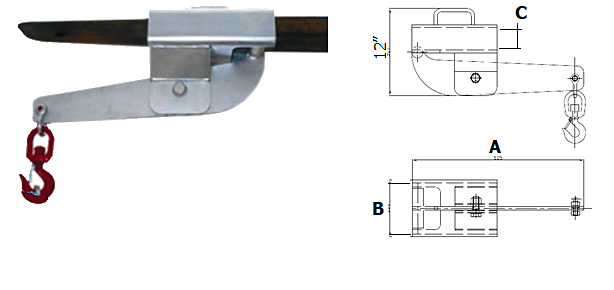

Model CLC1500
A B C WT-LB Capacity
22.5" 7" 3.15" 53 3,300 LB

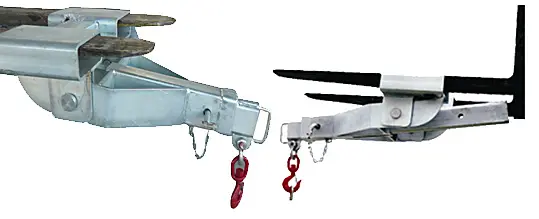

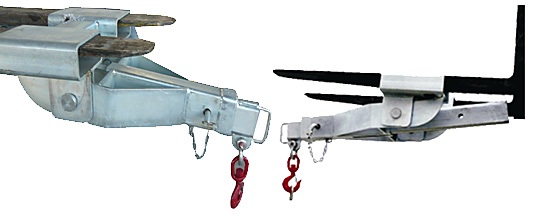

Model CLC3000

Mounted on both forks.
Self-fastening by clamping to fork blades.
Includes safety swivel cargo hook and shackle.
Galvanized finish.

Hook position is dependent on jib’s location on fork blades.  Check with forklift maker for actual capacity rating at these load centers.

Position Extension in Inches Capacity SWL-LB
1 46 6,600
2 61 4,400
3 76 3,3000

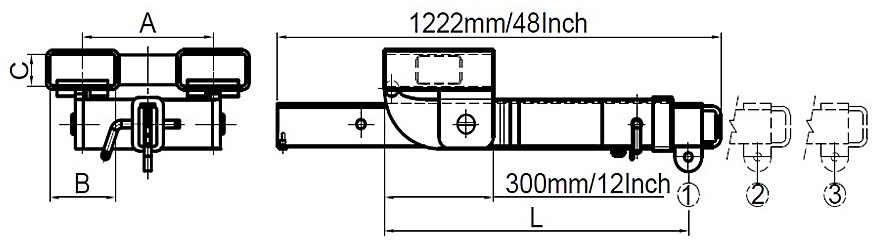

Odoo • Text and Image Model CLC3000
A B C D
14.18 7" 3.15"
163
