RDD Series Rotators RDD 45 & RDD 70
Fork-Co designs and manufactures forklift RDD Series Rotators, RDD 45 & RDD 70, with custom configurations,
with Lease & Rental Options, tailored to your exact application and equipment needs.

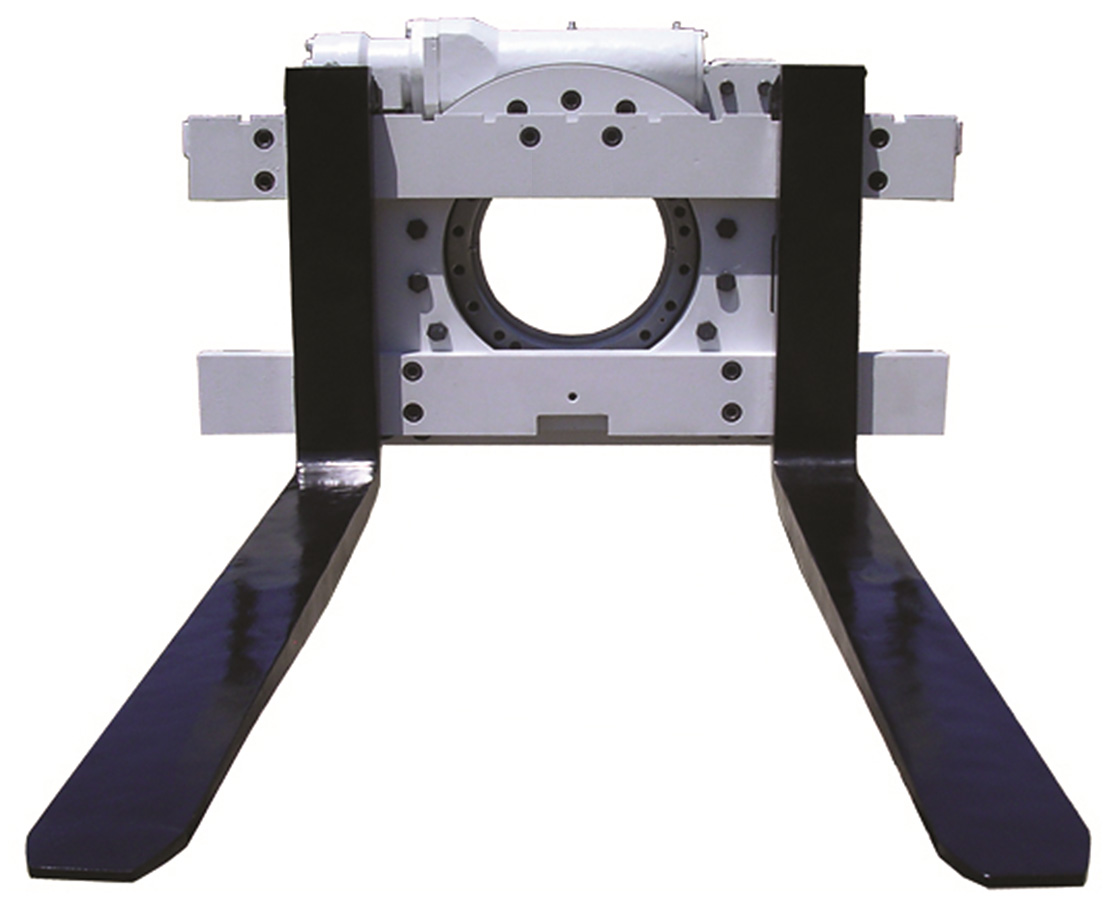

The RDD Series Rotators (RDD 45 & RDD 70) are heavy-duty forklift rotator attachments designed to deliver high torque and smooth, controlled rotation. Built for demanding industrial and recycling applications, they combine strength, efficiency, and reliability in a compact, low-profile design.
With a fully sealed construction and direct-drive worm system, the RDD Series is engineered for long-term performance in harsh operating environments.
Description & Usage:
RDD Series Rotators, RDD 45 & RDD 70, are designed to deliver efficient, controlled rotation for heavy industrial loads. Available in RDD 45 and RDD 70 configurations, they are built for demanding applications where strength, precision, and reliability are essential.
- High torque output with smooth, controlled rotation
- Fully sealed design for recycling and scrap environments
- Improved visibility through slewing ring core design
- Low-profile height from direct-drive worm system
- Underside hydraulic connections (no exposed hoses above unit)
These features make the RDD Series ideal for recycling, scrap handling, and industrial processing environments where durability, safety, and clean integration are critical. Compact designs also enhance operator visibility while maintaining strong rotational performance in continuous-use applications.
Industries & Applications:
RDD Series Rotators are widely used in industries that require controlled rotation of heavy or irregular loads. Common applications include:
- Recycling and scrap metal operations
- Waste management facilities
- Manufacturing and industrial processing
- Material recovery and sorting operations
- Metal fabrication and handling
- Heavy industrial logistics
Whether rotating bins, scrap containers, or industrial materials, the RDD Series provides consistent torque and control for efficient operation.
Key Features of RDD Series Rotators RDD 45 & RDD 70
Secure Load Control
Reduces shifting during transport.
Improved Operator Precision
Better placement and handling.
Heavy-Duty Construction
Built for rugged environments.
Customized Fitment
Designed for your equipment and loads.
- RDD 45 Capacity 4,500 LB / RDD 70 Capacity 7,000 LB
- Great Visibility
- Clean, Rugged Design
- Direct Drive
- 360° Rotation High Rotational Torque
- Self-Locking, No-Load Drift
- No Exposed Hoses or Fittings
-
Fully Sealed

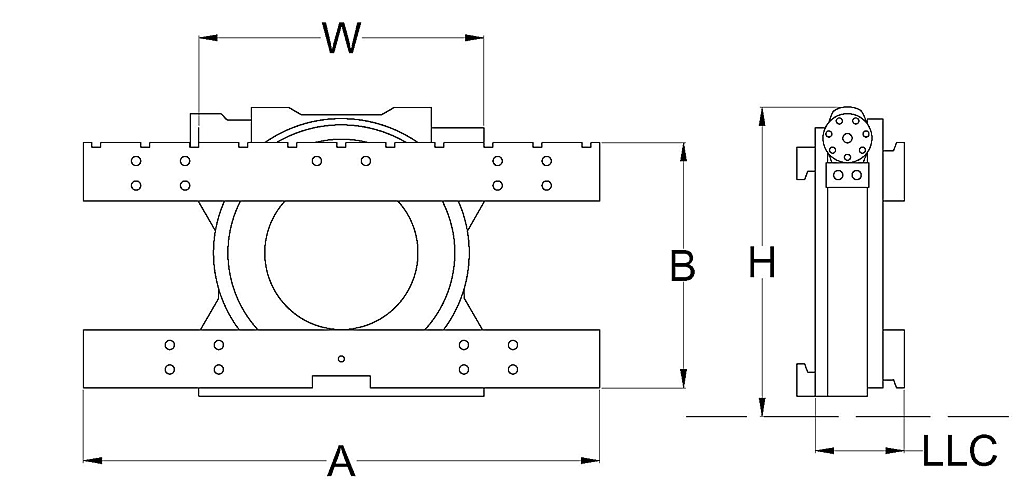

| Model | Cap @ 24" LC | Mount Class |
FORK
Bar(A/B)
|
Height In (H) |
Weight
LB
|
Lost
Load (LLC)
|
HCG
|
VCG | Carriage Width Min (W) |
| RDD 45-A-37 | 4,500 | II | 37 / II | 23.9 | 486 | 6.9 | 3.8 | 11.8 | 32 |
| RDD 45-A-42 |
4,500 |
II | 42 / II | 23.9 | 511 | 6.9 | 4 | 11.8 | 32 |
| RDD 45-B-37 |
4,500 |
III | 37 / II | 27.3 | 506 | 6.9 | 3.6 | 12.1 | 32 |
| RDD 45-B-42 |
4,500 |
III | 42 / II | 27.3 | 532 | 6.9 | 3.8 | 12.1 | 32 |
| Model | Cap @ 24" LC | Mount Class |
FORK
Bar(A/B)
|
Height In (H) |
Weight
LB
|
Lost
Load (LLC)
|
HCG
|
VCG | Carriage Width Min (W) |
|
RDD 70-B-42 |
7,000 | III | 42 / III | 30.1 | 643 | 7.2 | 3.7 | 13.6 | 32 |
|
RDD 70-B-48 |
7,000 | III | 48 / III | 30.1 | 668 | 7.2 | 4.1 | 13.6 | 32 |
Note:
Consult the forklift manufacturer for the rated capacity of the forklift with this attachment installed. Actual capacity may be less than the capacity shown here.
Max operating pressure: 2,000 PSI
Single-function attachment
Recommended flow rate min. 8 GPM, Max. 16 GPM
| Model | Cap @ 24" LC | Mount Class |
FORK
Bar(A/B)
|
Height In (H) |
Weight
LB
|
Lost
Load (LLC)
|
HCG
|
VCG | Carriage Width Min (W) |
| RDD 45-A-37 | 4,500 | II | 37 / II | 23.9 | 486 | 6.9 | 3.8 | 11.8 | 32 |
| RDD 45-A-42 |
4,500 |
II | 42 / II | 23.9 | 511 | 6.9 | 4 | 11.8 | 32 |
| RDD 45-B-37 |
4,500 |
III | 37 / II | 27.3 | 506 | 6.9 | 3.6 | 12.1 | 32 |
| RDD 45-B-42 |
4,500 |
III | 42 / II | 27.3 | 532 | 6.9 | 3.8 | 12.1 | 32 |
| Model | Cap @ 24" LC | Mount Class |
FORK
Bar(A/B)
|
Height In (H) |
Weight
LB
|
Lost
Load (LLC)
|
HCG
|
VCG | Carriage Width Min (W) |
|
RDD 70-B-42 |
7,000 | III | 42 / III | 30.1 | 643 | 7.2 | 3.7 | 13.6 | 32 |
|
RDD 70-B-48 |
7,000 | III | 48 / III | 30.1 | 668 | 7.2 | 4.1 | 13.6 | 32 |
Request a Quote
Fork-Co Leads the Pack
With our industry-best lead times (4-5 weeks on complex builds), full in-house engineering and design team, on-site manufacturing and fabrication facility just south of Houston, TX, and vast standard product inventory, Fork-Co is the right choice for your project. We stand behind our products 100%, either it accomplishes your goals, or we aren't done.
