AB-C pipe clamp
AB-C Pipe Clamp
The AB-C PIPE HOLD-DOWN CLAMP is designed to fit class 2 and class 3 (ITA/FEM/ISO) hook type carriages while retaining the sideshift function, if used, on most forklifts. The AB-C series handles pipe ranging from 2.8 inch diameter up to 20 inch diameter in lengths to 40 feet. This clamp is easy to install using ITA/FEM standard hooks. The clamp has zero lost load thickness so the original fork length is retained. It opens to vertical, allowing the forklift to handle conventional cargo. All of the clamp hydraulics are installed and this unit ships ready to plug and work. Give us a call or email us by our contact page. We can review your forklift setup to see if Series AB is right for your application.

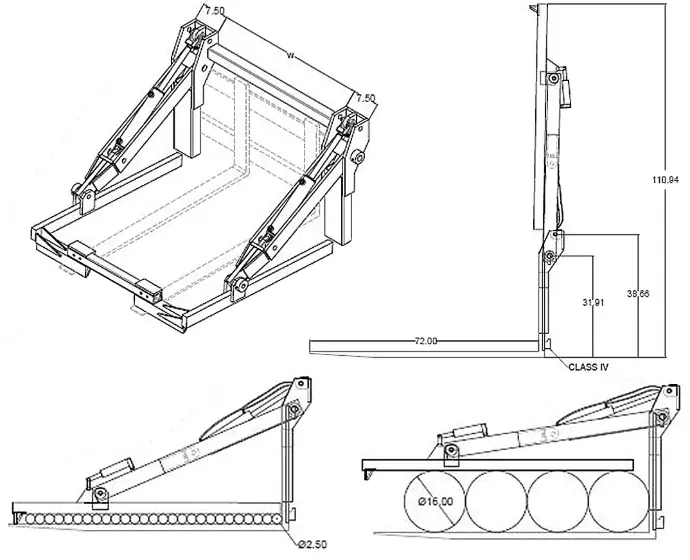

AB-C Forklift Hold-Down Clamp
| Mounting Class | ITA Class IV; ISO/FEM Class 4A Hook Type with Bolted Adapter Plates |
| Physical Specs | WEIGHT: 1380 LB AET (THICKNESS): ZERO HCG: RAISED 1.75”; LOWERED 23.5” VCG RAISED 47.5”; LOWERED 14” |
| Capacity at Load Center |
17,500 LB @ 24” (CLASS IV; ISO 4A) |
| Clamping Force |
8,200 lb @ 1750 psi |
| Pipe Diameter Range | 2.0" - 32" |
| Control Valve |
Dual Over-Center Valve with Hydraulic Lock Sun Cavity T-21A, Sun Assembly CWE-LHN-XII |
| Operating Pressure | 1500 - 1700 psi |
| Flow Rate | 6-12 gpm |
| Max Arm Speed | OPEN/CLOSED FULL CYCLE: 5.5 SECONDS @ 10 GPM |
| Hydraulic Oil |
VISCOSITY: 10W; PETROLEUM BASED; FILTRATION ISO 19/16 |
| Max Operating Temp | 80 C (170 F) |
| Plumbing |
SAE 9/16 UNC THREADS; 3/8 INCH DIAMETER ID HOSE RATED BURST MINIMUM 3000 PSI ADAPTERS AND FITTINGS JIC #6 37 DEGREE FLARE |
