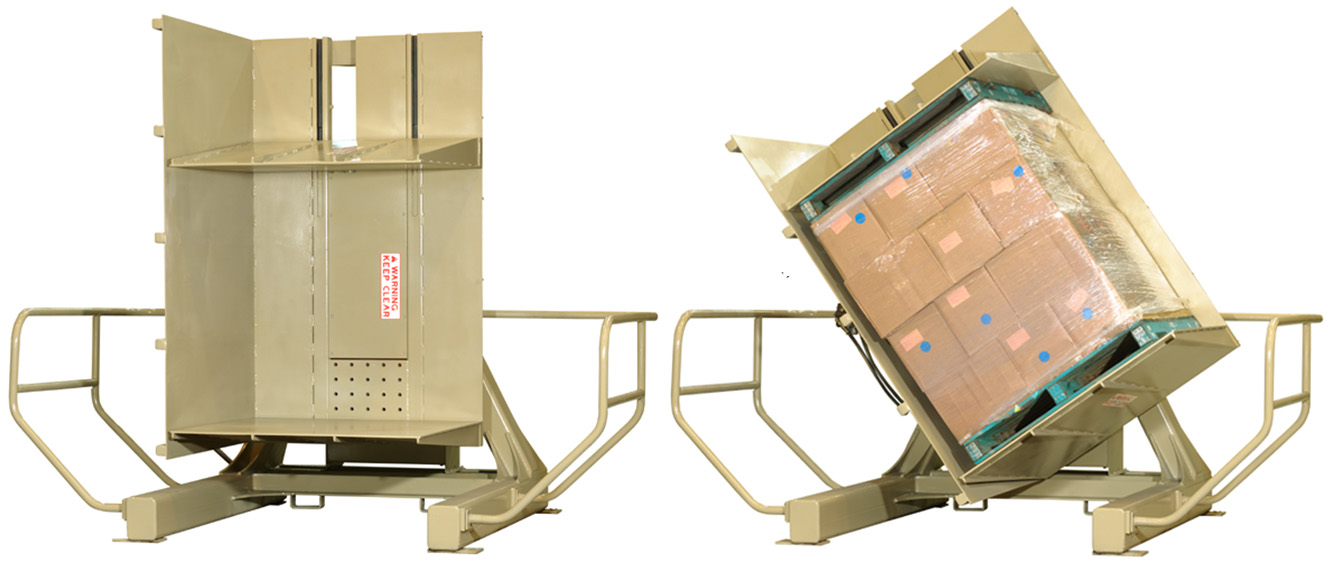

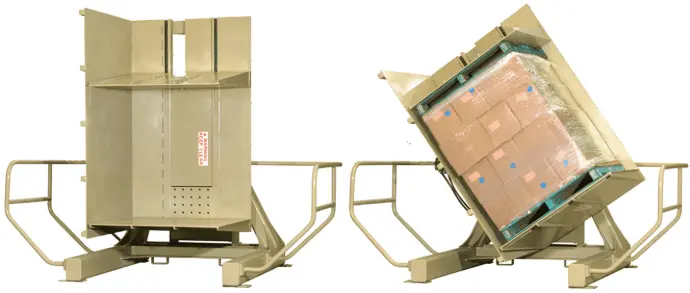

Stationary Load Inverters
Features
Efficient load transfer between load bases, pallet to pallet, pallet to slip sheet, slip sheet to pallet.
180 degree gear drive rotation
Side stabilizer plate secures the load, aligns and squares off the load side
Fork pockets for forklift transport
Personnel guard standard
Operation
The outbound load base is prepared and positioned. For example, a stack of pallets is inverted and set aside. Load is positioned in the inverter and an inverted pallet placed on top. Clamp load. Invert 180 degrees. Open clamp. Remove load and top pallet.
Inverting loads without a top pallet allows removal and replacement of the bottom pallet while maintaining load orientation to the load base, stacking product top-up.
The inverter can also transfer loads from pallet to slip sheet. It is ideal for inverting wine or for resettling liquids. Use it to remove damaged product from lower layers or to remove freezer spacers.
Options
Dual moving arm version for shorter loads.
Manual valve control standard.
6-position pendant control available.
Stationary Load Inverters
| Capacity | 4,000 @ 24" LC | Weight | 3200 LB |
| Platen Size | 50" x 44" | Base Width | 62" |
| Opening | 40" - 70" | Max. Height | 87" |
| Power Pack | 240/480 VAC 3PH 60Hz | Max. Rotational Clearance | 90" |
| Rotation Speed | 3.5 RPM | Length | 76" |
| Controls | Manual Control Valves | Tank Capacity | 15 Gal w/sight gauge 2000 psi w/relief and lock valve |
| Mounting | Free Standing w/Fork pockets or bolted | Safety Guarding | 1.5" dia tubing bolted and removable |
