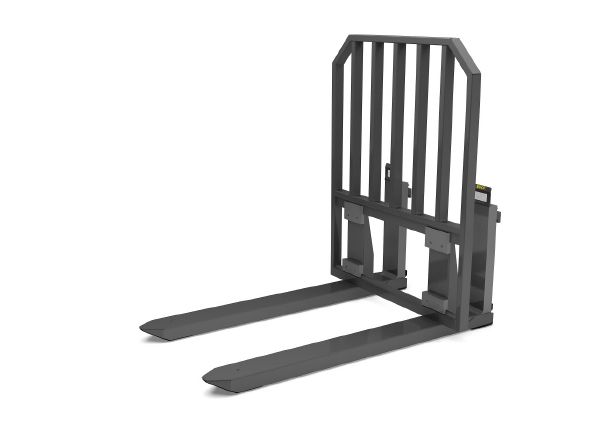

Load Backrest for Class II, III and IV Carriages

Load Backrest for Class II, III and IV Carriages

Standard LBR is side bolted with two bolts per side.
Available to fit any bolting pattern.
Complies with ITSDF B56.1
Bolts are not included
Semi-Gloss black paint
Made from heavy steel bar stock
Optional LBR heights and widths are available

Consult the forklift manufacturer for the rated capacity of the forklift with this attachment installed.  Actual capacity may be less than capacity shown.

48" High Load Backrest
Model
Weight
LB
2LBR-36-48
 98
2LBR-40-48
 103
2LBR-43-48
 105
2LBR-47-48
 110
3LBR-42-48
 103
3LBR-44-48
 107
3LBR-49-48
 118
3LBR-53-48
 126
GET YOUR QUOTE TODAY





SPECIFY BACKREST HEIGHT FROM BOTTOM OF FORK:
H: _____________

SPECIFY FORK THICKNESS:
T:_____________
RIGHT HAND SIDE VIEW SHOWN IN SKETCH

FILL IN DIMENSIONS ON APPROPRIATE SKETCH
