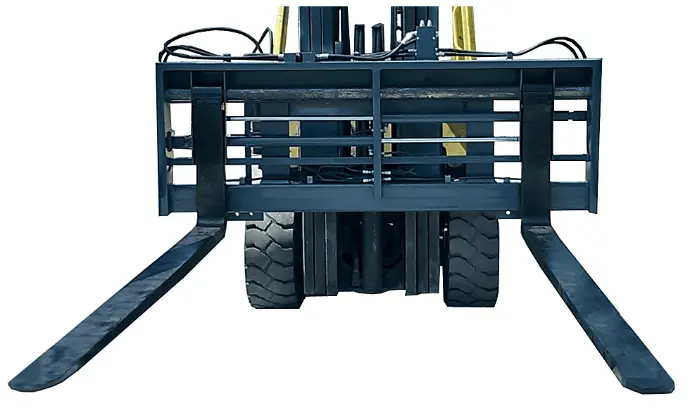

Hook-to-pin sideshifting fork positioners
MTCW: Min Truck Carriage Width
Hook to pin type fork positioners and sideshifters are used where the heel of the fork could bind or hang up during extraction from under loads, such as lumber loading or trailer loading.
| A | Fork Spread Out to Out |
| B | Fork Spread In to In |
| C | Overall Width |
| HCG | Horizontal Center of Gravity |
| VCG | Vertical Center of Gravity |
| ET | Effective Thickness |
|
Model
|
MTCW
|
Total SS
|
A | B | C | ET | HCG | VCG | Weight lbs | Pin Dia. | Pin HT | Pin Inet |
| SFAP-38-55 | 35 | 8 | 34 | 3.5 | 38 | 2.9 | 2 | 14.4 | 300 | 1.75 | 21.0 | 0.0 |
| SFAP-40-55 | 35 | 8 | 36 | 3.5 | 40 | 2.9 | 2 | 14.4 | 315 | 1.75 | 21.0 | 0.0 |
| SFAP-43-55 | 35 | 8 | 39 | 3.5 | 43 | 2.9 | 2 | 14.4 | 340 | 1.75 | 21.0 | 0.0 |
| SFAP-46-55 | 41 | 8 | 42 | 3.5 | 46 | 2.9 | 2 | 14.4 | 375 | 1.75 | 21.0 | 0.0 |
| SFAP-52-55 | 41 | 8 | 48 | 3.5 | 52 | 2.9 | 2 | 14.4 | 425 | 1.75 | 21.0 | 0.0 |
| SFAP-62-55 | 48 | 8 | 58 | 13.5 | 62 | 2.9 | 2 | 14.4 | 470 | 1.75 | 21.0 | 0.0 |
|
Model
|
MTCW
|
Total SS
|
A | B | C | ET | HCG | VCG | Weight lbs | Pin Dia. | Pin HT | Pin Inet |
| 10,000 lbs. Attachment Capacity @ 24" LC. Class III Hook Type Mount. | ||||||||||||
| SFBP-44-100 | 36 | 8 | 40 | 4 | 44 | 2.9 | 2.1 | 15.1 | 425 | 2.0 | 25.5 | 0.5 |
| SFBP-50-100 | 40 | 8 | 46 | 4 | 50 | 2.9 | 2.1 |
15.1
|
480 | 2.0 | 25.5 | 0.5 |
| SFBP-62-100 | 48 | 8 | 58 | 4 | 62 | 2.9 | 2.1 |
15.1
|
560 | 2.0 | 25.5 | 0.5 |
| SFBP-74-100 | 60 | 8 | 70 | 16 | 74 | 2.9 | 2.1 |
15.1
|
640 | 2.0 | 25.5 | 0.5 |
| SFBP-98-100 | 60 | 8 | 94 | 40 | 98 | 3.5 | 2.8 |
15.1
|
830 | 2.0 | 25.5 | 0.5 |
|
Model
|
MTCW
|
Total SS
|
A | B | C | ET | HCG | VCG | Weight lbs | Pin Dia. | Pin HT | Pin Inet |
| 15,500 lbs. Attachment Capacity @ 24" LC. Class IV Hook Type Mount. | ||||||||||||
| SFCP-44-155 | 40 | 10 | 40 | 4 | 44 | 3.2 | 2.6 | 22.0 | 760 | 2.5 | 33.5 | 0.5 |
| SFCP-50-155 | 40 | 10 | 46 | 4 | 50 | 3.2 | 2.6 |
22.0
|
860 | 2.5 | 33.5 | 0.5 |
| SFCP-62-155 | 48 | 10 | 58 | 4 | 62 | 3.2 | 2.6 |
22.0
|
990 | 2.5 | 33.5 | 0.5 |
| SFCP-74-155 | 60 | 10 | 70 | 16 | 74 | 3.2 | 2.6 |
22.0
|
1135 | 2.5 | 33.5 | 0.5 |
| SFCP-98-155 | 60 | 10 | 94 | 40 | 98 | 3.8 | 3.2 |
22.0
|
1400 | 2.5 | 33.5 | 0.5 |
Request a Quote
Fork-Co Leads the Pack
With our industry best lead times (4-5 weeks on complex builds), full in-house engineering and design team, on-site manufacturing and fabrication facility just south of Houston, TX, and very large standard product inventory, Fork-Co is the right choice for your project. We stand behind our products 100%, either it accomplishes your goals, or we aren't done.
