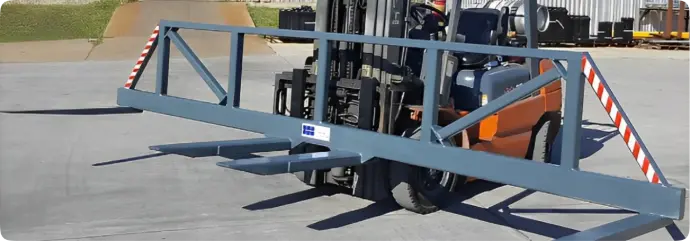

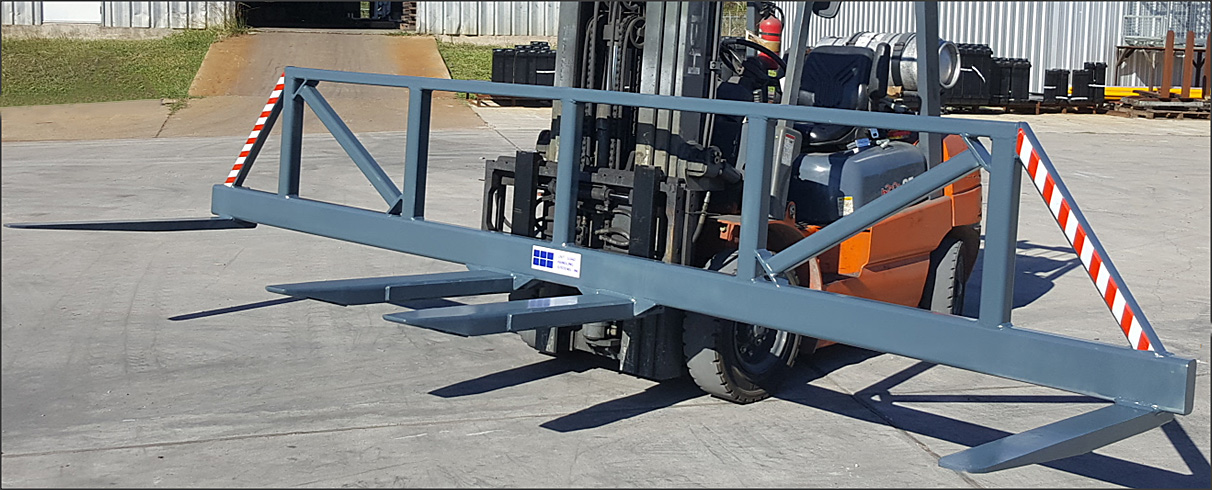

Fork Spreader Frame Fork Mounted
Fork mounted spreaders will reduce the usable length of the original truck forks. The fork sleeves recover this length.
Outer forks are stabilizer forks only. They are not intended to carry the full rated capacity. This will be a shared loading across all four forks.
Stabilizer (outer) forks are included with this unit.
Fork Length is varied as needed. Inner and outer can differ in Length.
|
Model
|
Capacity LBS @ 24" Load Center
|
Outer Fork T x W
|
Rec.
Inner Fork Width |
Inner OTO
|
Length Inner Pocket
|
Length Outer Pocket | Outer OTO |
ET
|
HCG
|
Weight
LB |
|
|
WFAF-108-55 |
5,500 |
1.5 x 4 |
4 | As Rec. |
48 |
48 | 108 | 2 x 6 | 6.5 | 7.3 | 845 |
| WFAF-120-55 |
5,500 |
1.5 x 4 |
4 | As Rec. |
48 |
48 | 120 | 2 x 6 | 6.5 | 7.1 | 965 |
| WFAF-144-55 |
5,500 |
1.5 x 4 |
4 | As Rec. |
48 |
48 | 144 | 2 x 6 | 6.5 | 6.8 | 1115 |
| WFAF-168-55 |
5,500 |
1.5 x 4 |
4 | As Rec. |
48 |
48 | 168 | 2 x 6 | 6.5 | 6.1 | 1375 |
| WFBF-108-100 |
10,000 |
1.75 x 4 |
5 | As Rec. |
48 |
48 | 108 | 2.5 x 7 | 8.5 | 7.5 | 1035 |
| WFBF-120-100 |
10,000 |
1.75 x 4 |
5 | As Rec. |
48 |
48 | 120 | 2.5 x 7 |
8.5 |
7.3 | 1145 |
| WFBF-144-100 |
10,000 |
1.75 x 4 |
5 | As Rec. |
48 |
48 | 144 | 2.5 x 7 |
8.5 |
7 | 1230 |
| WFBF-168-100 |
10,000 |
1.75 x 4 |
5 | As Rec. |
48 |
48 | 168 | 2.5 x 7 |
8.5 |
6.9 | 1340 |
| WFBF-204-100 |
10,000 |
1.7 x 4 |
5 | As Rec. |
48 |
48 | 204 | 2.5 x 7 |
8.5 |
7.1 | 1560 |
| WFBF-240-100 |
10,000 |
1.75 x 4 |
5 | As Rec. |
48 |
48 | 240 | 2.5 x 7 |
8.5 |
7 | 1830 |
| WFBF-268-100 |
10,000 |
1.75 x 4 |
5 | As Rec. |
48 |
48 | 268 | 2.5 x 7 |
8.5 |
6.8 | 2175 |
| WFCF-96-155 |
15,500 |
2 x 6 |
6 | As Rec. |
48 |
48 | 96 | 3.25 x 7.5 | 8.5 | 8.39 | 1390 |
| WFCF-120-155 |
15,500 |
2 x 6 |
6 | As Rec. |
48 |
48 | 120 | 3.25 x 7.5 |
8.5 |
8.3 | 1510 |
| WFCF-144-155 |
15,500 |
2 x 6 |
6 | As Rec. |
48 |
48 | 144 | 3.25 x 7.5 |
8.5 |
8.1 | 1750 |
| WFCF-168-155 |
15,500 |
2 x 6 |
6 | As Rec. |
48 |
48 | 168 | 3.25 x 7.5 |
8.5 |
7.8 | 1985 |
| WFCF-192-155 |
15,500 |
2 x 6 |
6 | As Rec. |
48 |
48 | 192 | 3.25 x 7.5 |
8.5 |
7.4 | 2290 |
| WFCF-220-155 |
15,500 |
2 x 6 |
6 | As Rec. |
48 |
48 | 220 | 3.25 x 7.5 |
8.5 |
7.1 | 2685 |
| WFCF-268-155 |
15,500 |
2 x 6 |
6 | As Rec. |
48 |
48 | 268 | 3.25 x 7.5 |
8.5 |
6.2 | 3490 |
Request a Quote
