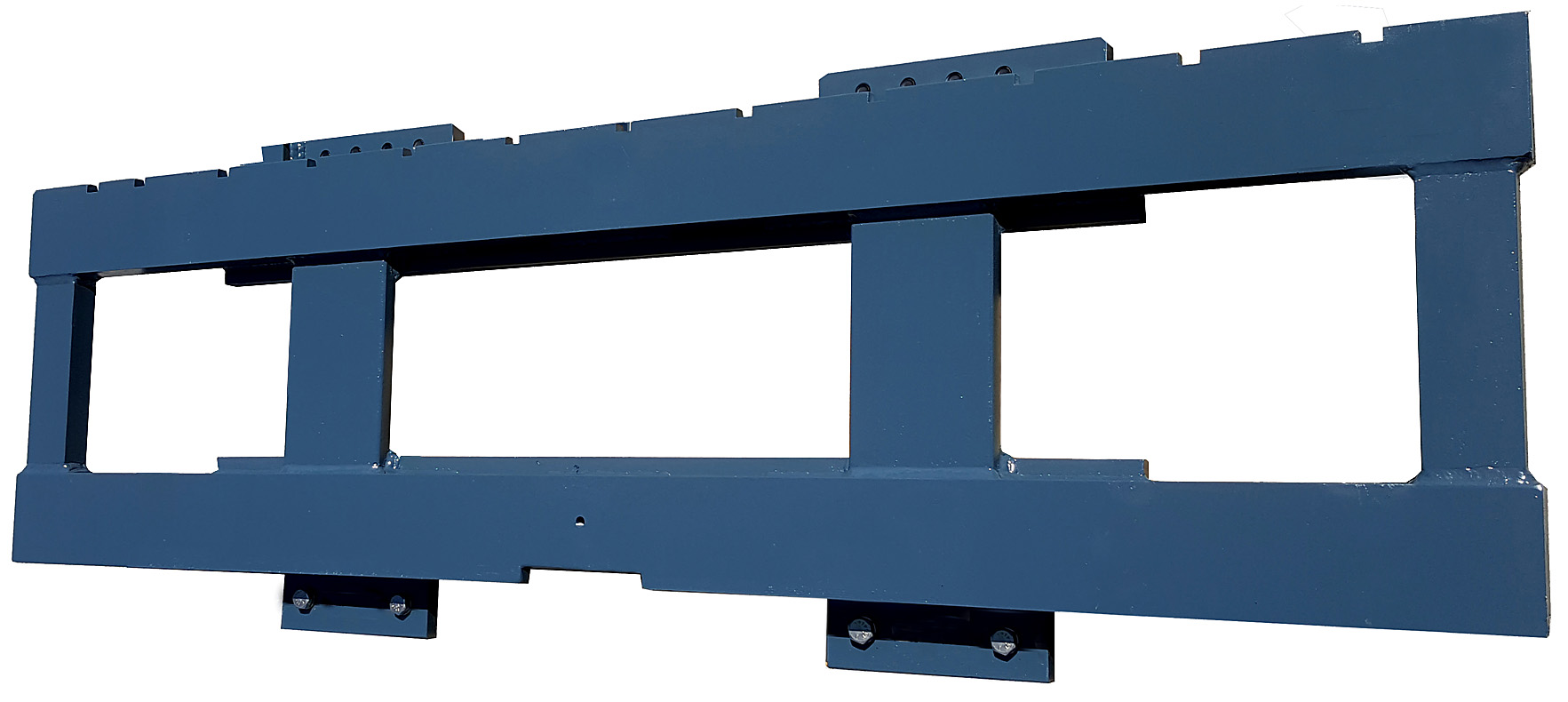

False Frames for Hook Type Carriages
A false frame is used to widen the fork spacing beyond the width of the truck’s carriage. These attachments are equipped with quick disconnect lower mountings for easy installation and removal.
Can be used for two or more forks such as for multi-pallet handling.
|
Model
|
Capacity LBS @ 24" Load Center
|
Hook Type
Mounting
Class
|
Min Truck
Carriage
Width
|
Fork Bar
Width
|
Fork Spread
I to I - O to O
|
ET
|
HCG
|
VCG
|
Weight
LBS
|
|
FHAA-37-55 |
5,500 |
II QD |
37" | 42" |
0" to 42" |
2.0" | 1.2" | 11" | 155 |
|
FHAA-48-55 |
5,500 |
II QD |
37" |
48" |
0" to 48" |
2.0" | 1.3" | 11" | 225 |
|
FHAA-60-55 |
5,500 |
II QD |
37" |
60" |
0" to 60" |
2.5" |
1.5" | 11" | 340 |
|
FHAA-72-55 |
5,500 |
II QD |
37" |
72" |
0" to 72" |
2.5" | 1.6" | 11" | 420 |
|
FHAA-84-55 |
5,500 |
II QD |
37" |
84" |
0" to 84" |
2.5" | 1.7" | 11" | 470 |
|
FHBB-42-90 |
9,000 | III QD |
37" |
42" |
0" to 42" |
2.5" | 1.4" | 14" | 225 |
|
FHBB-48-90 |
9,000 |
III QD |
37" |
48" |
0" to 48" |
3.0" | 1.5" | 14" | 285 |
|
FHBB-60-90 |
9,000 |
III QD |
37" |
60" |
0" to 60" |
3.0" | 1.9" | 14" | 395 |
|
FHBB-72-90 |
9,000 |
III QD |
37" |
72" |
0" to 72" |
3.0" | 1.9" | 14" | 455 |
|
FHBB-84-90 |
9,000 |
III QD |
37" |
74" |
0" to 84" |
3.0" | 1.9" | 14" | 500 |
|
FHCC-84-150 |
15,000 |
IV QD |
48" |
84" |
0" to 84" |
3.3" | 3.3" | 18" | 700 |
|
FHCC-96-150 |
15,000 |
IV QD |
48" |
96" |
0" to 96" |
3.3" | 3.3" | 18" | 760 |
| FHCC-120-150 |
15,000 |
IVI QD |
48" |
120" |
0" to 120" |
4.5" | 4.5" | 18" | 930 |
Request a Quote
Fork-Co Leads the Pack
With our industry best lead times (4-5 weeks on complex builds), full in-house engineering and design team, on-site manufacturing and fabrication facility just south of Houston, TX, and very large standard product inventory, Fork-Co is the right choice for your project. We stand behind our products 100%, either it accomplishes your goals, or we aren't done.
