Double Wide Sideshifting Carriages

MTCW: Minimum Truck Carriage Width

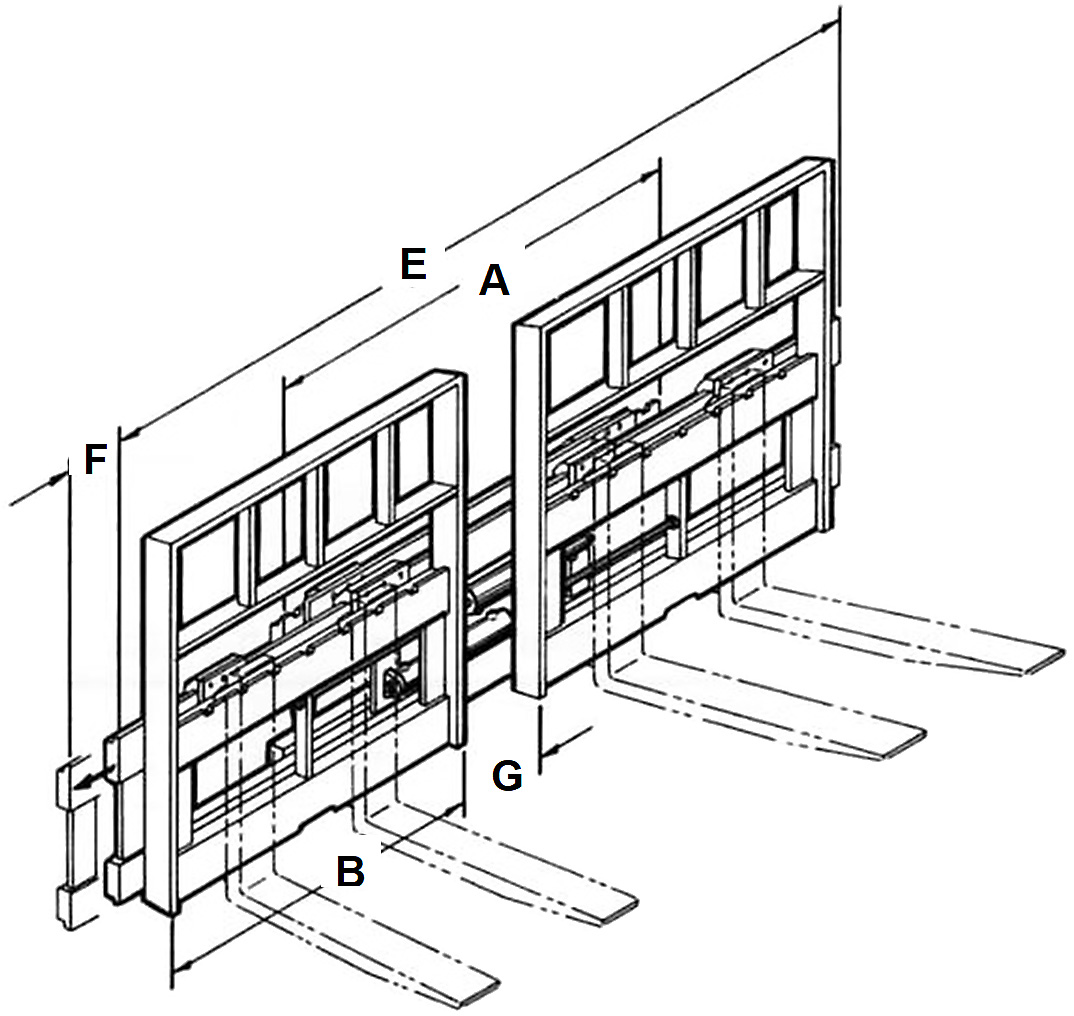

A: Base Carriage Width
B: Individual Sideshifer Width w/o LBR's
C: Min/Max Width w/o LBR's
D:Individual Sideshifter Width with LBR's
E: Min/Max Width with LBR's
F: Individual Shift for each Sideshifter
G: Shift Over Center
H: Individual Sideshifter Mounting
J: Fork Mounting
ET: Effective Thickness
HCG: Horizontal Center of Gravity
VCG: Vertical Center of Gravity.

Odoo • Text and Image
Model MTCW A B C D E F G H J ET HCG VCG
Weight (lbs.)
w/o w LBR's
10,000 lbs. Attachment Capacity @ 24" LC. Base Carriage has Class III Mounting. Please see Note A.
DSSAA-31-55
DSSBA-31-100
36 70 31 70/80 33 70/84 15 6 II II 4.5 1.9 16
540
740
DSSBB-38-100
38 76 38 76/94 39 78/96 15 6 III II 4.5 1.8 12
635
785
DSSBB-42-100
38 84 42 84/102 43 86/104 15 6 III II 4.5 1.8 12
790
950
DSSBB-48-100
38 96 48 96/114 49 98/116 15 6 III II 4.5 1.8 12
945
1115
10,000 lbs. Attachment Capacity @ 24" LC. Base Carriage has Class III Mounting.
DSSBB-38-100 38 76 36 76/94 39 78/96
15 6 III III 4.5 1.8 12
800
950
DSSBB-42-100 38
84 42 84/102 43 86/104 15 6 III III 4.5 1.8 12
985
1145
DSSBB-48-100 38 96 48 96/114 49 98/116 15 6 III III 4.5 1.8 12
1165
1335
16,500 lbs. Attachment Capacity @ 24" LC. Base Carriage has Class IV Mounting.
DSSCB-42-165 42 84 42 84/102 43.5 87/105 15 6 IV III 5.0 2.1 18
1250
1430
DSSCB-48-165 42 96 48 96/114 49.5 99/117 15 6 IV III 5.0
2.1 18
1430
1620
DSSCB-60-165 42 120 60 120/138 61.5 123/141 15 6 IV III 5.0
2.1 18
1610
1810

DOUBLE WIDE SIDESHIFTER

 This attachment comprises a wide base carriage and two narrower sideshifters  having longer strokes than a standard sideshifter.

 There are two styles of double wide sideshifter:

Fixed base carriage with two sideshifters installed.

Sideshifting base carriage with two sideshifters installed (3-function attachment).

 Used for handling palletized unit loads, this attachment allows the operator to move the two loads apart or together and pass over the centerline of the forklift.  They are used frequently in beverage applications and also building materials.

               Our brochure outlines the functions and key dimensions of various models.

 What we need to know:

Load description of the product including dimensions and weight.  In this product we need the load height as well to determine the correct load backrest height.

Make and model of the forklift.

Forklift carriage width. See minimum carriage width in brochure.

Is sideshifting base carriage required?
