Crane Jibs Short and Long
Medium duty rated fork crane jib for most applications. Hook points are measured from rear edge of fork pockets.
Included: Carriage Safety Chain with Snap Hook, 5-ton Safety Swivel Cargo Hook and Shackle, Lynch Pin, Job Locking Pin

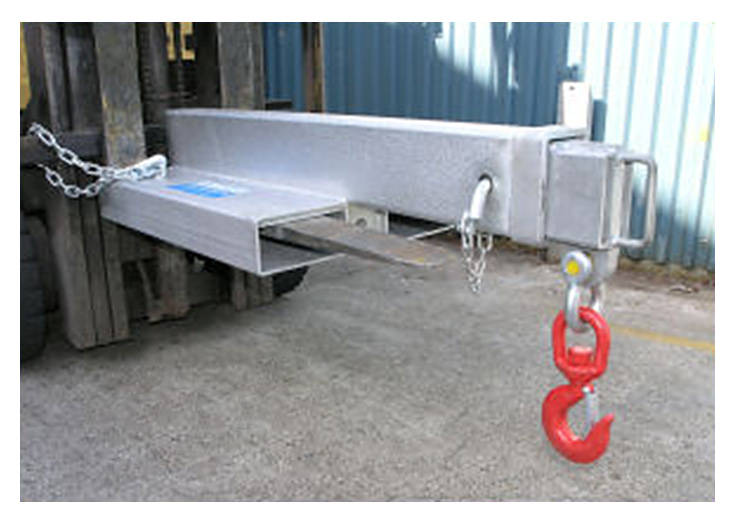

Crane Jib, Short Model FJCS45
| Fork Pocket Size | 2.75" x 7.25" |
| Closed Length to Hook | 46" |
| Max Open to Hook | 76" |
|
Max Open to Hook
|
26" |
| Fork Spacing, Max OTO | 18.5" |
| Weight | 230 LB |
| Hook Center Inches | Capacity LB |
| 26 | 10,000 |
| 46 | 6,380 |
| 62 | 2,860 |
| 76 | 1,650 |

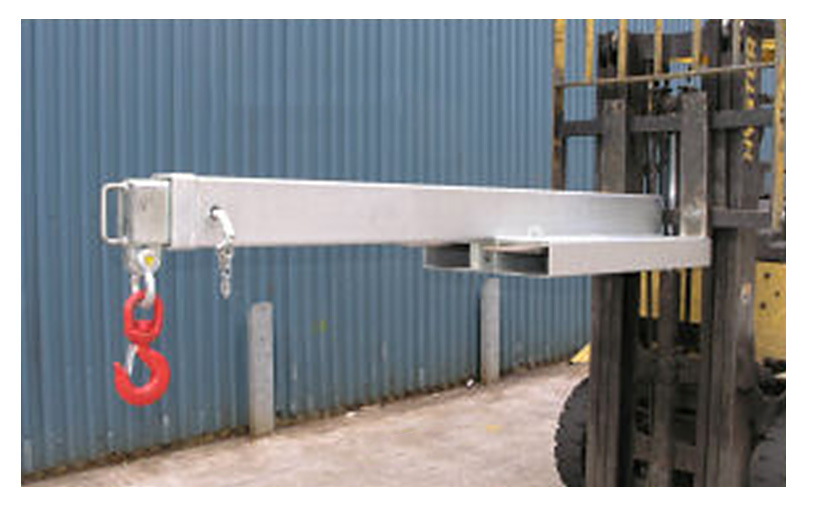

Crane Jib, Long Model FJCL45
|
Fork Pocket Size
|
2.75" x 7.25"
|
|
Closed Length to Hook
|
78"
|
|
Max Open to Hook
|
138"
|
|
Max Open to Hook
|
36"
|
|
Fork Spacing, Max OTO
|
18.5"
|
|
Weight
|
308 LB
|
|
Hook Center Inches
|
Capacity LB
|
| 36 |
10,000 |
| 78 | 2,860 |
| 92 | 1,650 |
| 108 |
1,230 |
| 124 |
840 |
| 138 |
450
|
