Coil Rams for Pin Type Carriages
Pin Type Coil Rams
Tough alloy steel and precision design and manufacturing make the Fork-co brand a durable, rugged coil ram.
Features:
Design to fit any forklift with a pin-type carriage
Back plate is locked at bottom for positive retention on the carriage
Boom centerline from ground is variable according to application requirements
Features:
Design to fit any forklift with a pin-type carriage
Back plate is locked at bottom for positive retention on the carriage
Boom centerline from ground is variable according to application requirements
![](/web/image/3274/Coil%20Rams%20for%20Hook%20Type%20Carriages.jpg)

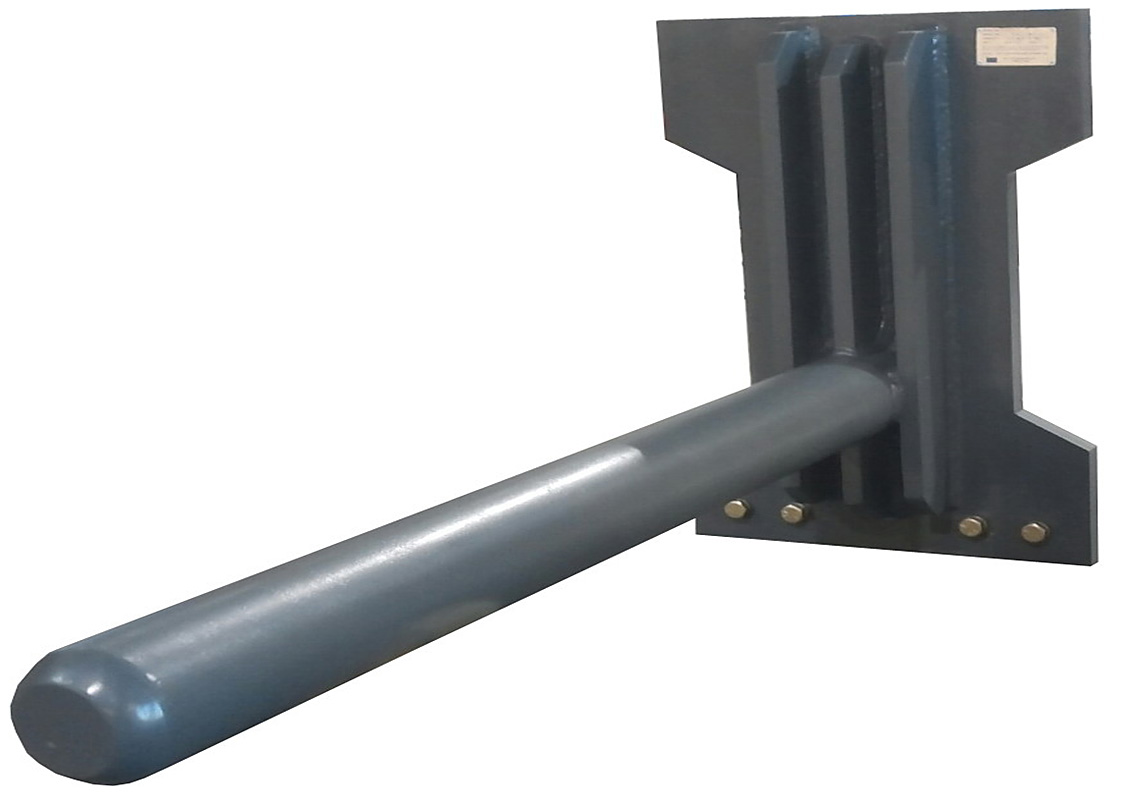

Coil Rams with Pin Type Mounting
Model No. | Capacity @ LC | Mounting | Usable Length | Diameter | ET | HCG | VCG | Weight lbs |
CRPN-36-100 | 10,000 LB @ 24" | Pin Type | 36" | 8" | 3.0" | 9.9" | Note A | 430 |
CRPN-48-100 | 10,000 LB @ 24" | Pin Type | 48" | 8" |
3.0" | 14.3" |
Note A | 485 |
CRPN-60-100 | 10,000 LB @ 30" | Pin Type | 60" | 8" |
3.0" | 18.9" |
Note A | 545 |
CRPN-36-200 | 20,000 LB @ 24" | Pin Type | 36" | 10" | 4.0" | 9.3" |
Note A | 870 |
CRPN-48-200 | 200,00 LB @ 24" | Pin Type | 48" | 10" | 4.0" | 13.3" |
Note A | 955 |
CRPN-60-200 | 20,000 LB @ 30" | Pin Type | 60" | 10" | 4.0" | 17.6" |
Note A | 1050 |
CRPN-48-360 | 36,000 LB @ 24" | Pin Type | 48" | 10" | 4.5" |
12.7" |
Note A | 1510 |
CRPN-60-360 | 36,000 LB @ 30" | Pin Type | 60" | 10" | 4.5" |
16.7" |
Note A | 1645 |
CRPN-72-360 | 36,000 LB @ 36" | Pin Type | 72" | 10" | 4.5" |
21.0" |
Note A | 1785 |
CRPN-48-500 | 50,000 LB @ 24" | Pin Type | 48" | 12" | 7.0" |
9.9" |
Note A | 3125 |
CRPN-60-500 | 50,000 LB @ 30" | Pin Type | 60" | 12" | 7.0" | 12.8" |
Note A | 3290 |
CRPN-72-500 | 50,000 LB @ 36" | Pin Type | 72" | 12" | 7.0" | 16.2" |
Note A | 3460 |
CRPN-48-650 | 65,000 LB @ 24" | Pin Type | 48" | 12" | 8.5" |
8.5" |
Note A | 5710 |
CRPN-60-650 | 65,000 LB @ 30" | Pin Type | 60" | 12" | 8.5" |
10.6" |
Note A | 5925 |
CRPN-72-650 | 65,000 LB @ 36" | Pin Type | 72" | 12" | 8.5" |
13.0" |
Note A | 6140 |
CRPN-96-650 | 65,000 LB @ 48" | Pin Type | 96" | 12" | 8.5" |
18.5" |
Note A | 6565 |
![Odoo • Image and Text](/web/image/7750/Made%20in%20Texas.jpg)
Fork-Co Leads the Pack
With our industry best lead times (4-5 weeks on complex builds), full in-house engineering and design team, on-site manufacturing and fabrication facility just south of Houston, TX, and very large standard product inventory, Fork-Co is the right choice for your project. We stand behind our products 100%, either it accomplishes your goals, or we aren't done.
