Multi-Purpose & Rigid Arm Carton Clamps
Fork-Co designs and manufactures forklift Multi-purpose & rigid arm carton clamps with custom configurations,
with Lease & Rental Options, tailored to your exact application and equipment needs.
Forklift Squeeze Attachments for Cartons, Boxes & Bins
Fork-Co’s Multi-Purpose & Rigid Arm Carton Clamps, also called forklift squeeze attachments or box clamps, are designed to handle pallet-less cartons and boxes, wooden bins and crates, totes, lugs, and Gaylord containers. These versatile forklift clamp attachments also accommodate many bale handling applications, supporting a range of warehouse, manufacturing, and distribution needs.
The clamp arms feature aluminum surfaces bonded to vulcanized grooved rubber for a secure grip and long service life. The bolted rubber contact surfaces are replaceable, while thin arm profiles allow easy load entry. Steel guards protect the arm tips to help preserve the contact surface.
Available in standard and custom opening ranges, with custom arm lengths and heights, Fork-Co’s carton clamps can be configured around your load dimensions and material handling requirements.
- Side shifting, non-side shifting, And Revolving
- Capacities From 3,000 Lb to 7,000 Lb
- Adjustable Arm Travel Speeds
- E-Profile Aluminum Frame
- T-Bar Alloy Steel Arm Carriers
- Self-Aligning Cylinders
- Lube-Free Contoured Arm Bearings
- Cylinder Protection Bumper
- Steel Abrasion Protection
-
Proven Design
- Side shifting: 2 hydraulic functions required
- Non-side shifting: 1 hydraulic function required
- Revolving: 2 hydraulic functions required
- Maximum operating pressure: 2000 PSI.
-
Recommended flow rate:
GBC19D 6-10GPM
GBC27D 10-14 GPM
- Special Opening Ranges
- Arm Sizes
- Quick Change Mounting
- Bolt-on Arms
- Solenoid Selector Valve
- Relief Valves
-
Segmented Pads
NOTE: The capacity of the truck with an attachment may be less than the attachment capacity shown here. Always consult the forklift manufacturer for actual capacity.
|

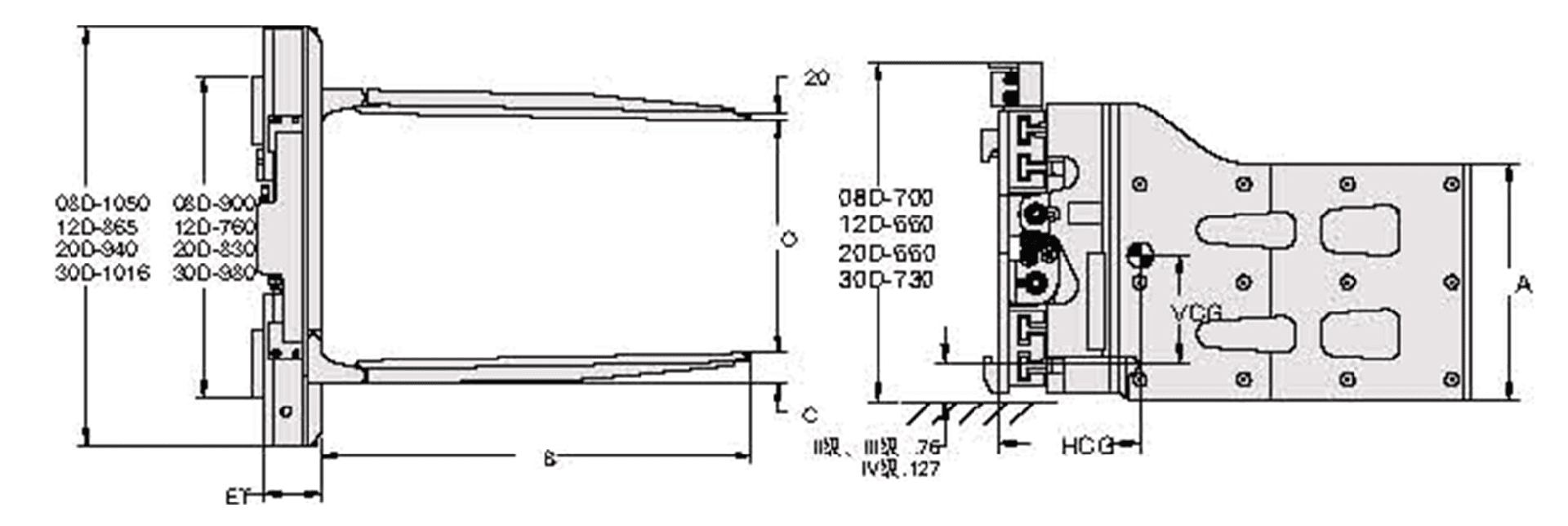

Capacity @24" LC |
Catalog Order No. | Mounting Class |
Opening Range |
HT A |
LGTH B |
Frame W |
Arm Thick. |
VCG | WT/LB | ET | HCG |
| 1500 |
GA08D-MCS-01A |
II | 17.5-66.5 | 15 | 36 | 42 | 1.75 | 10.1 | 540 | 5 | 13.8 |
| 2500 |
GA12D-MCS-01A |
II | 18-63 | 18 | 40 | 35 | 2.1 | 10.5 | 1023 | 5 | 15.5 |
| 2500 |
GA12D-MCS-02A |
II | 20.75-69 | 18 | 48 | 35 | 2.5 | 8.75 | 1045 | 5 | 15.6 |
| 3500 |
GA20D-MCS-05A |
II | 21.5-70.8 | 18 | 36 | 41 | 2 | 10 | 850 | 5 | 1105 |
| 3500 |
GA20D-MCS-02A |
II | 22-70 | 18 | 40 | 41 | 2.5 | 9.3 | 1047 | 5 | 14 |
| 3500 |
GA20D-MCS-01A |
II | 21.5-69.5 | 24 | 44 | 41 | 3 | 9.5 | 1040 | 5 | 14.6 |
| 3500 |
GA20D-MCS-06A |
II | 22-70 | 24 | 48 | 41 | 3.5 | 9.8 | 954 | 5 | 15.2 |
| 5000 | GA30D-MCS-01B |
III | 24-76 | 18 | 36 | 43 | 3 | 10 | 1064 | 6 | 8.5 |
| 5000 |
GA30D-MCS-02B |
III | 23.5-75.5 | 18 | 42 | 43 | 3.25 | 9.8 | 1194 | 6 | 10.9 |
| 5000 |
GA30D-MCS-03B |
III | 23-75 | 18 | 48 | 43 | 3.5 | 9.6 | 1320 | 6 | 13.3 |
Request a Quote
Fork-Co Leads the Pack
With our industry-best lead times (2-3 weeks on complex builds), full in-house engineering and design team, on-site manufacturing and fabrication facility just south of Houston, TX, and vast standard product inventory, Fork-Co is the right choice for your project. We stand behind our products 100%, either it accomplishes your goals, or we aren't done.
