Bin Tipper

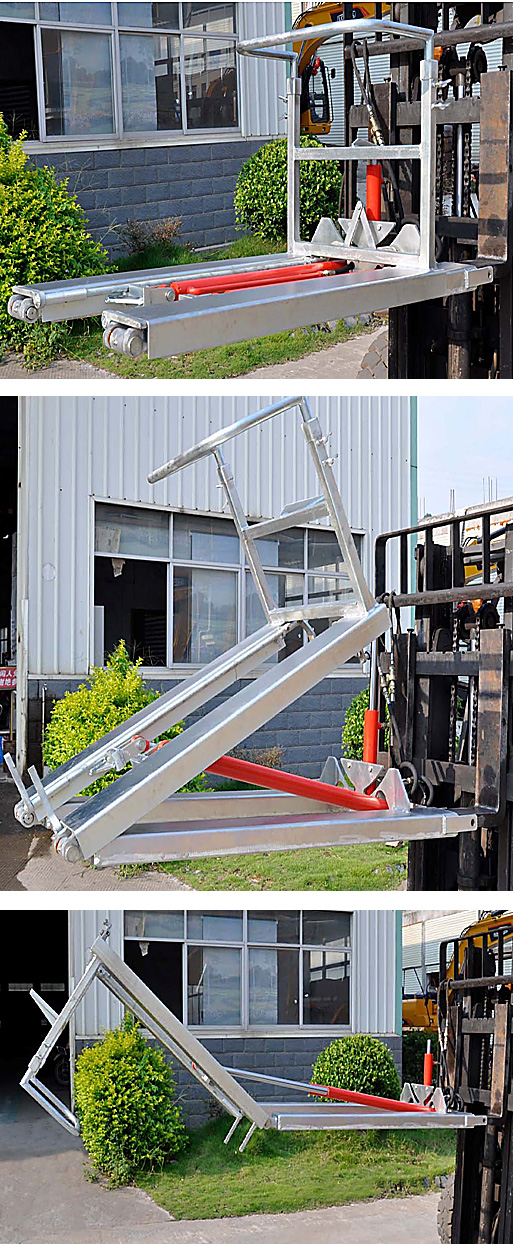

Bin Tipper Model BD12
Features
Designed for MacroBin 24-S, 24-FV, 16-S & 16-FV bins or similar.
Single hydraulic function.
Quick attachable fork mount.
Heel locking pins included.
Adjustable top bin retainer for handling a broad range of bins sizes.
Specifications
Forward dump angle: 142 degrees.
Fork pocket size: 2.75 x 5.5 in.
Pocket spacing: 24” on centers
Out to out over forks: 30 in.
Inside cylinder anchors: 6.25 in.
Maximum Hyd. Pressure: 2,350 PSI
MAXIMUM CAPACITY: 2,400 LB
AT LOAD CENTER: 24 INCHES
Fork-Co Leads the Pack
With our industry best lead times (4-5 weeks on complex builds), full in-house engineering and design team, on-site manufacturing and fabrication facility just south of Houston, TX, and very large standard product inventory, Fork-Co is the right choice for your project. We stand behind our products 100%, either it accomplishes your goals, or we aren't done.
