Crane Booms, Telescopic Extensions

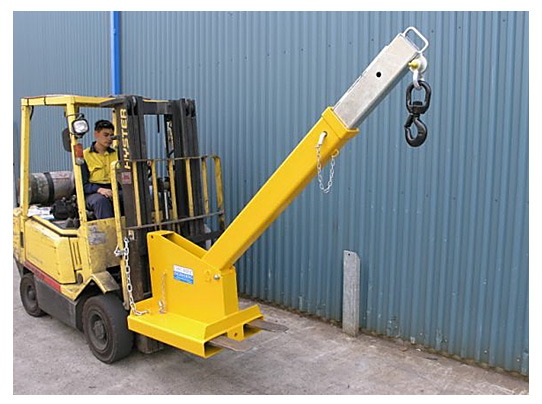

Tilt Crane Jib Model TJCL45 (Long)
Features:
5-TON SWIVEL SAFETY HOOK
FORK POCKET: 2.75 “ x 7.25”
POCKET CENTERS @ 12.75”
POCKET LENGTH: 30”

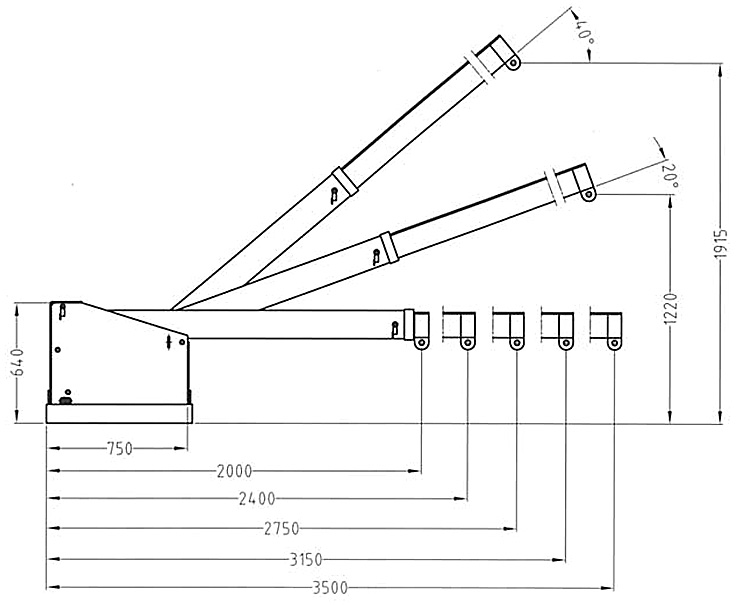

TILT ANGLES: 20 ° AND 40 °
CARRIAGE SAFETY CHAIN AND SNAP HOOK INCLUDED
JIB LOCKING PIN INCLUDED
REINFORCED FORK POCKETS
| Hook Center Inches | Capacity LB |
| 30 | 10,000 |
| 80 | 7,250 |
| 96 | 5,500 |
| 110 | 2,850 |
| 126 | 1,650 |
| 132 | 1,050 |
| Weight | 410 |
Fork-Co Leads the Pack
With our industry best lead times (4-5 weeks on complex builds), full in-house engineering and design team, on-site manufacturing and fabrication facility just south of Houston, TX, and very large standard product inventory, Fork-Co is the right choice for your project. We stand behind our products 100%, either it accomplishes your goals, or we aren't done.
